1912 Information Manual Page

So you want to see the manual on the Information on the Operation and Care of the E-M-F Automobiles? Well, you have found the right page.

These pages were scanned from an original copy of this manual. The only pages that do not appear here are the ones that are blank. There are 2 pages (front and back) that are blank at the beginning of the manual and one page blank at the back. Purhapse these were put in to allow for notes?

This manual gives lots of great pictures, details like setting the valve tappet clearance, and lot of just plain great reading.

The pages are presented as a link with a description to the right of the link detailing what is on that page.

Enjoy!!!


This is the cover of the Information manual. Click the picture to view.

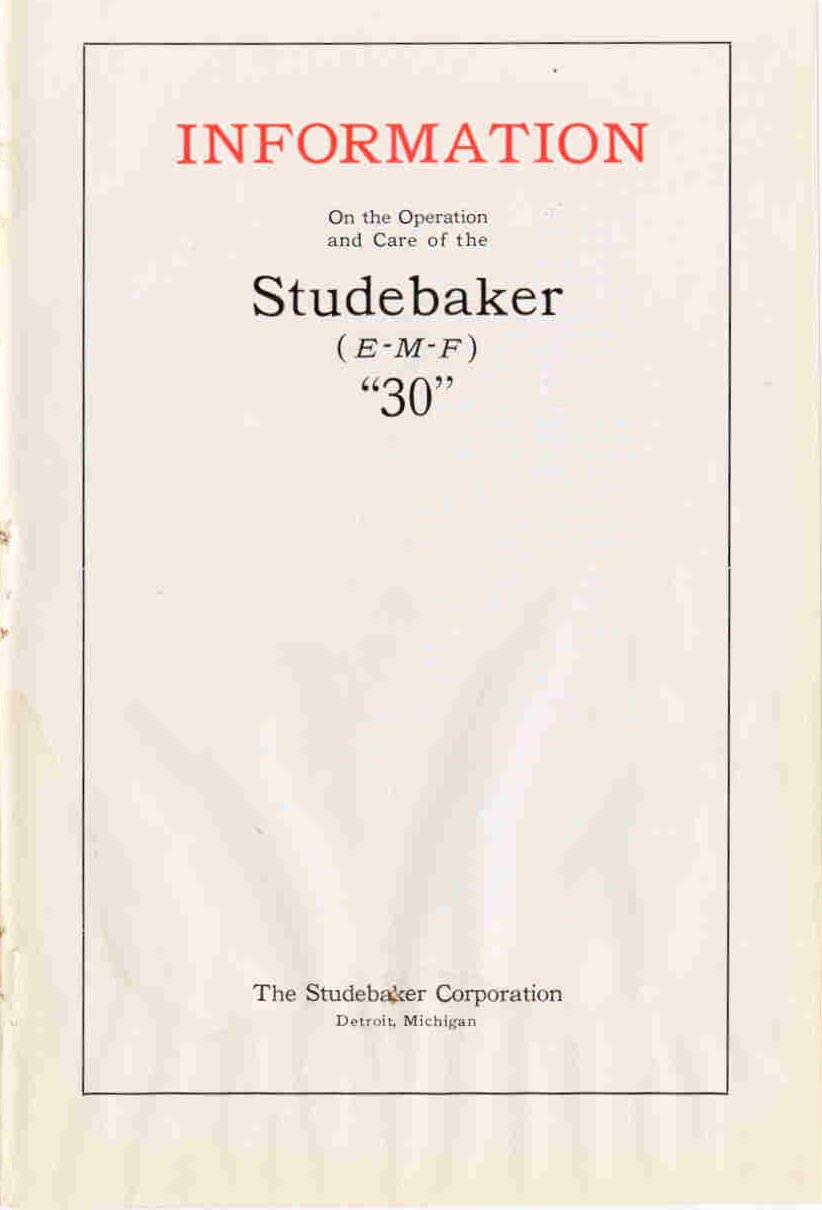

This is page 1 of the Information manual. Click the picture to view.

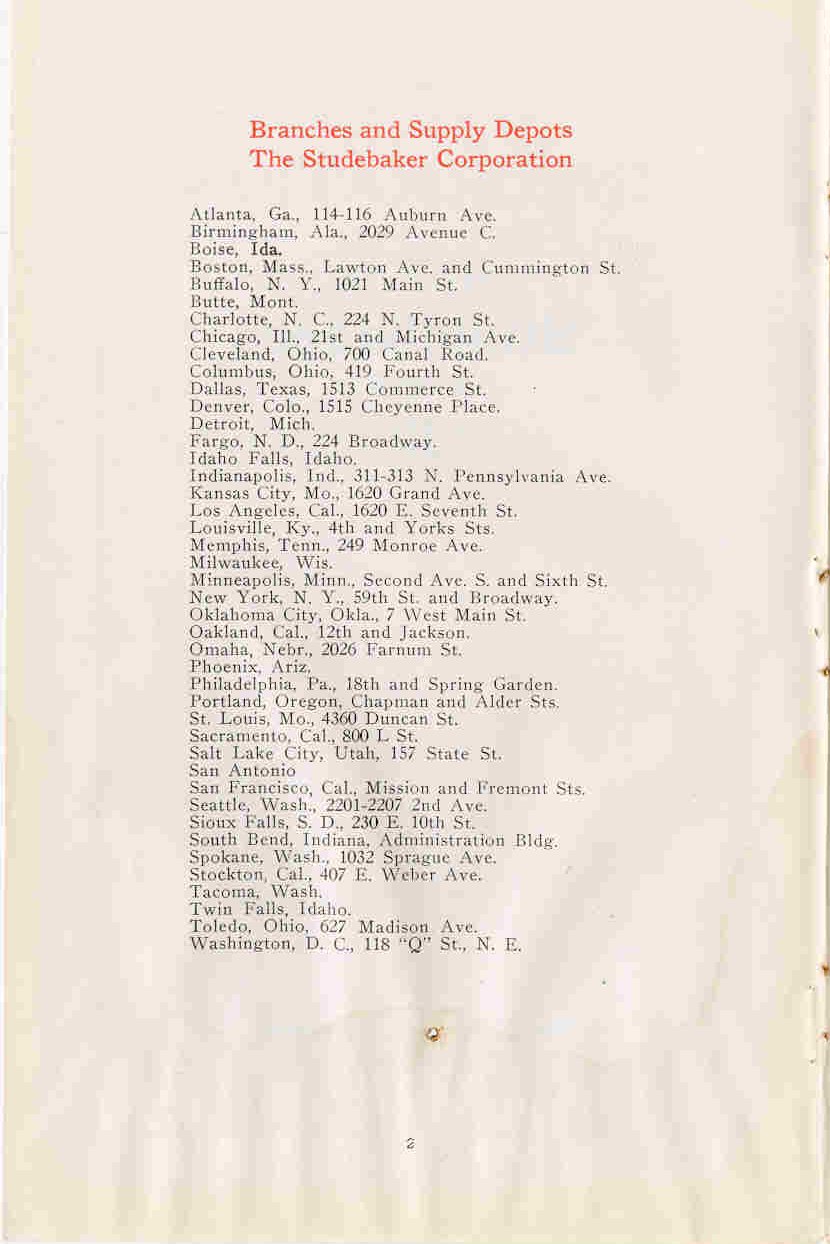

This is page 2 of the Information manual. This page lists the Branches and Supply Depots of the Studebaker Corporation. Click the picture to view.

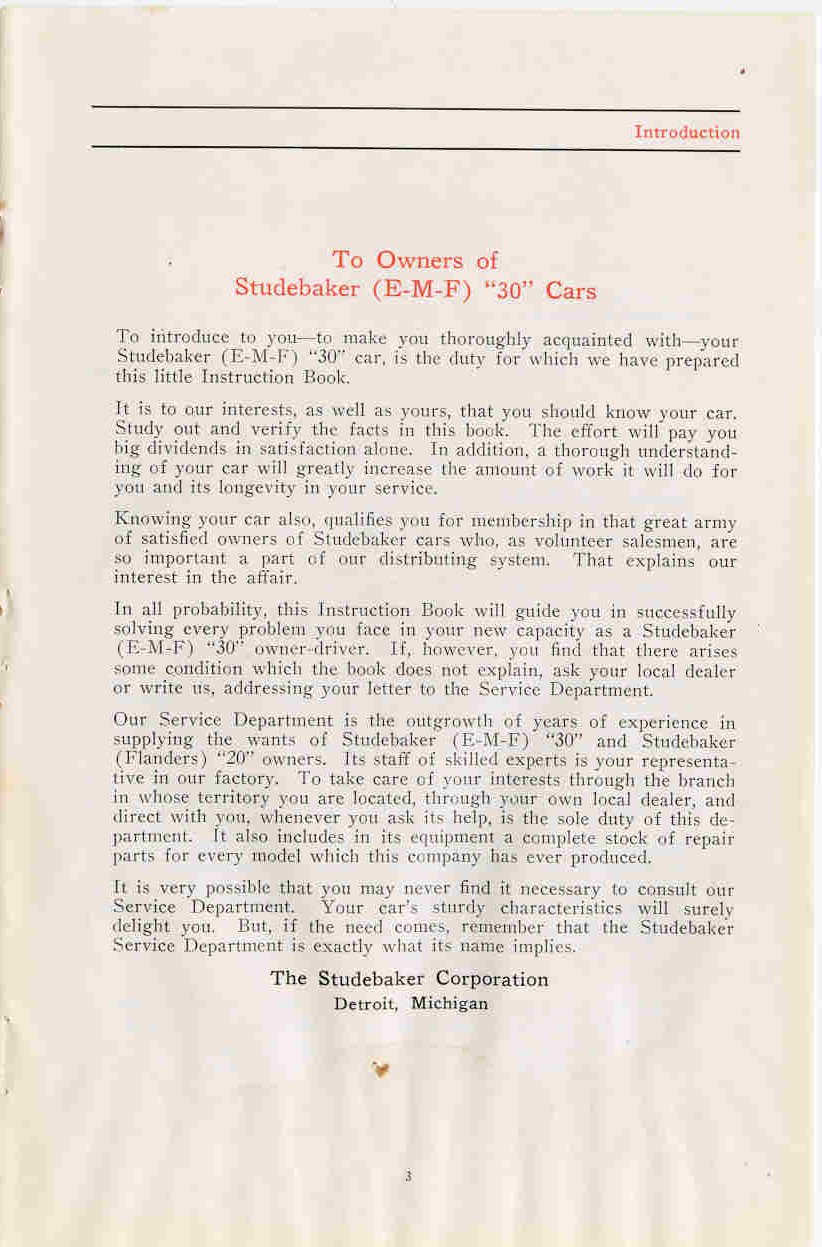

This is page 3 of the Information manual. It is like an introduction to the manual. E LeRoy Pelletier's writing to it's finest.

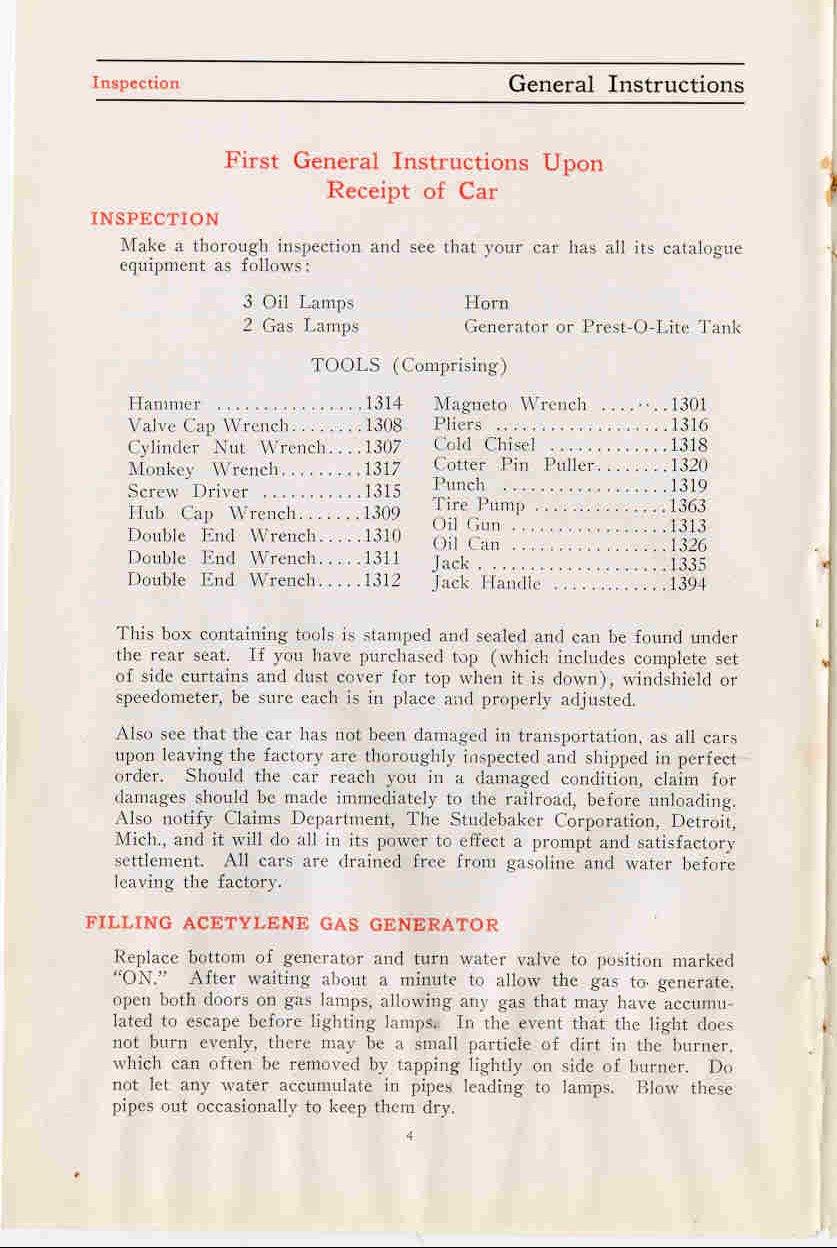

This is page 4 of the Information manual. Talks about inspection of your new E-M-F 30, lists the tools included in the tool pouch and discusses filling the Acetylene Gas Generator.

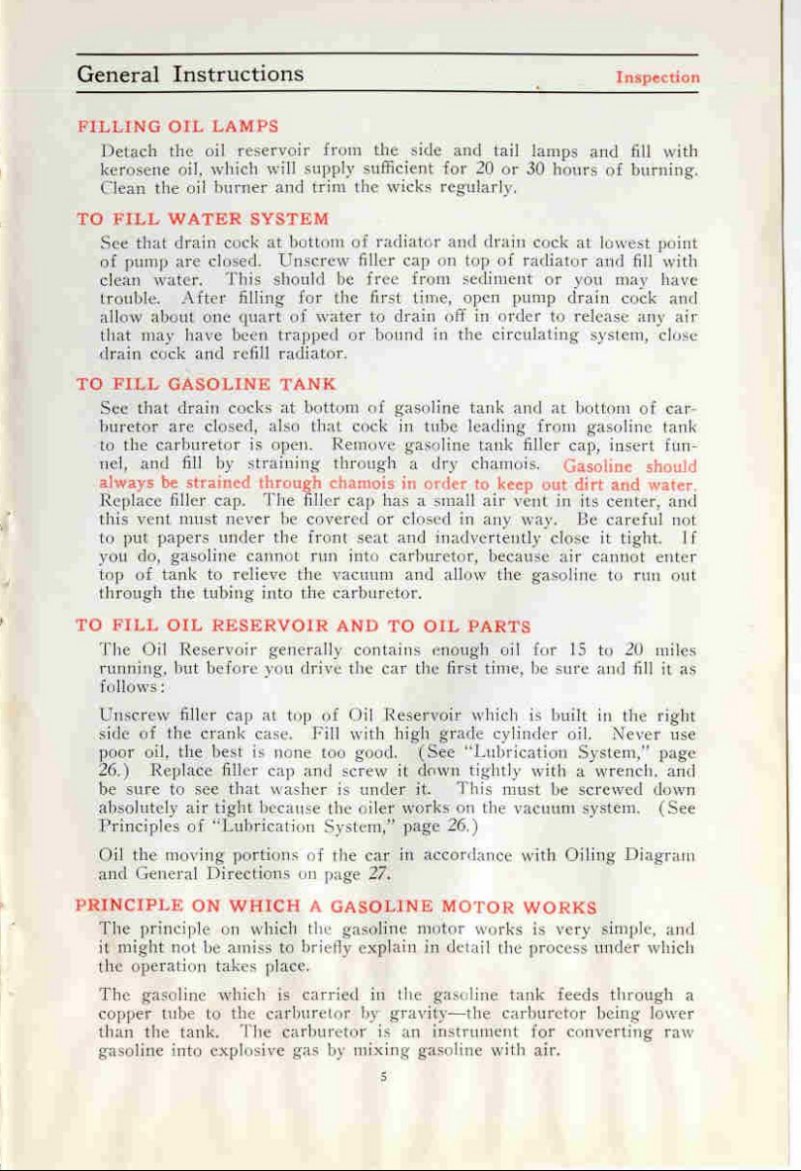

This is page 5 of the Information manual. Includes sections on "Filling Oil Lamps", "To Fill Water System", "To Fill Gasoline Tank", "To Fill Oil Reservoir and Oil Parts", and the start of "Principle on Which a Gasoline Motor Works".

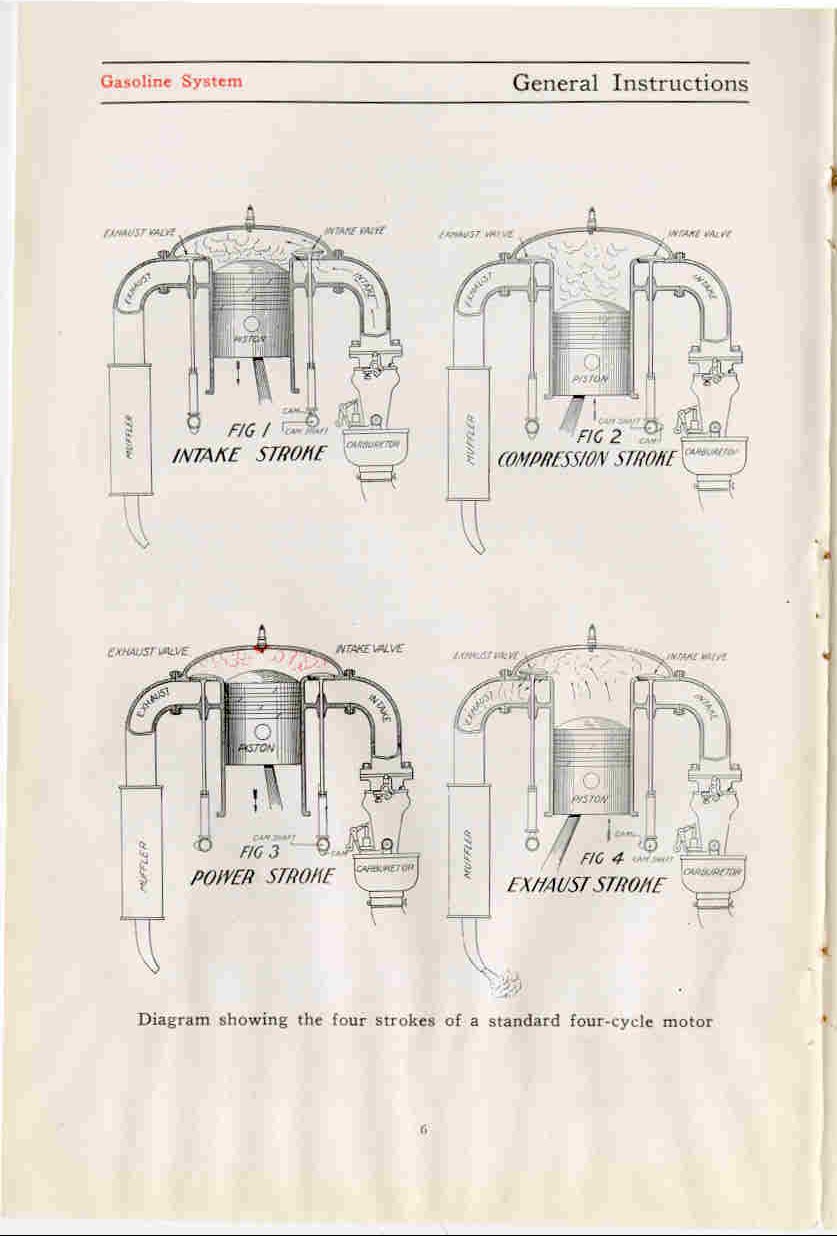

This is page 6 of the Information manual. Diagrams showing the four strokes of a standard four-cycle engine.

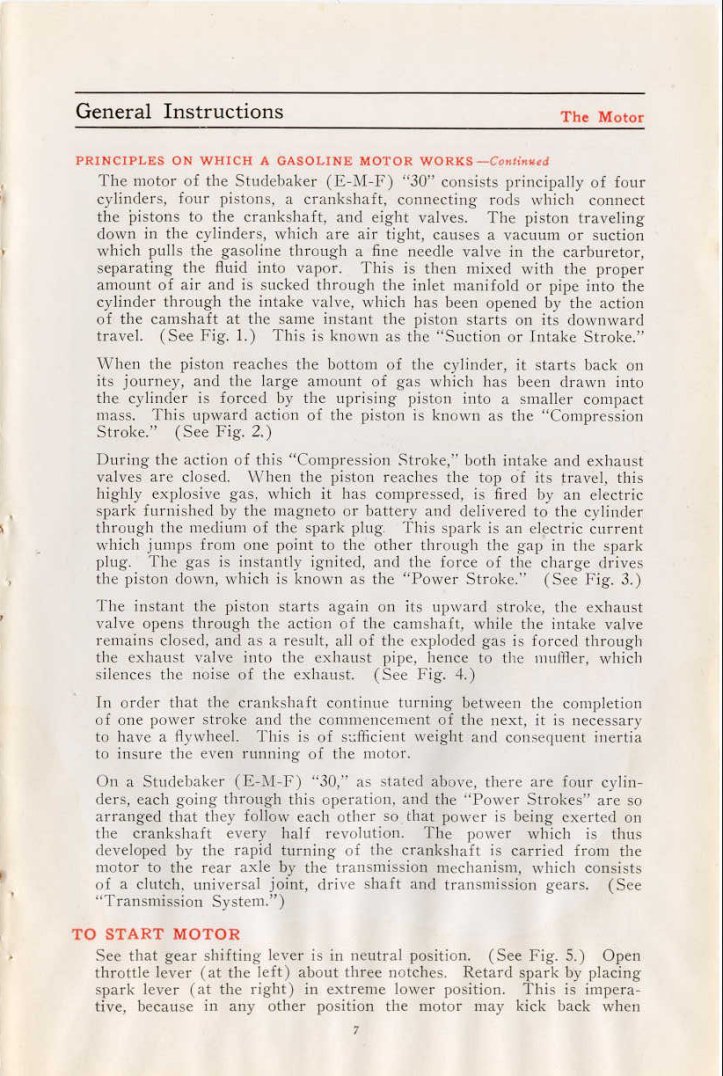

This is page 7 of the Information manual. Includes the conclusion of the "Principles on Which a Gasoline Motor Works" and the start to the section "To Start Motor".

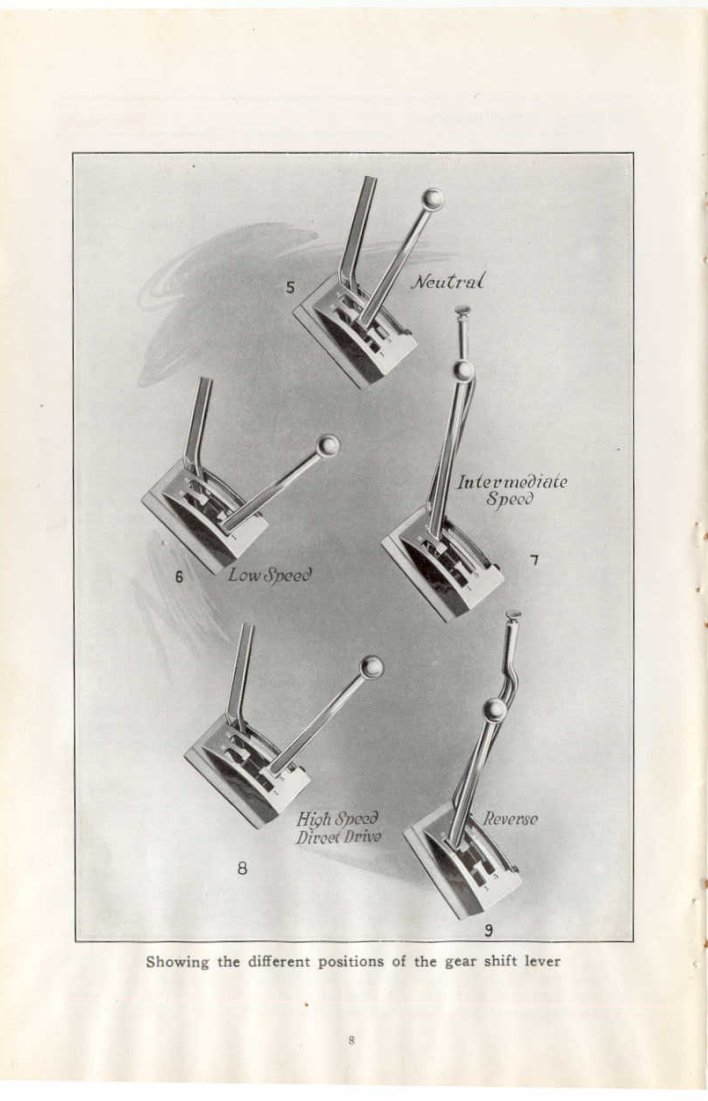

This is page 8 of the Information manual. This page has a diagram showing the different positions of the gear shift lever.

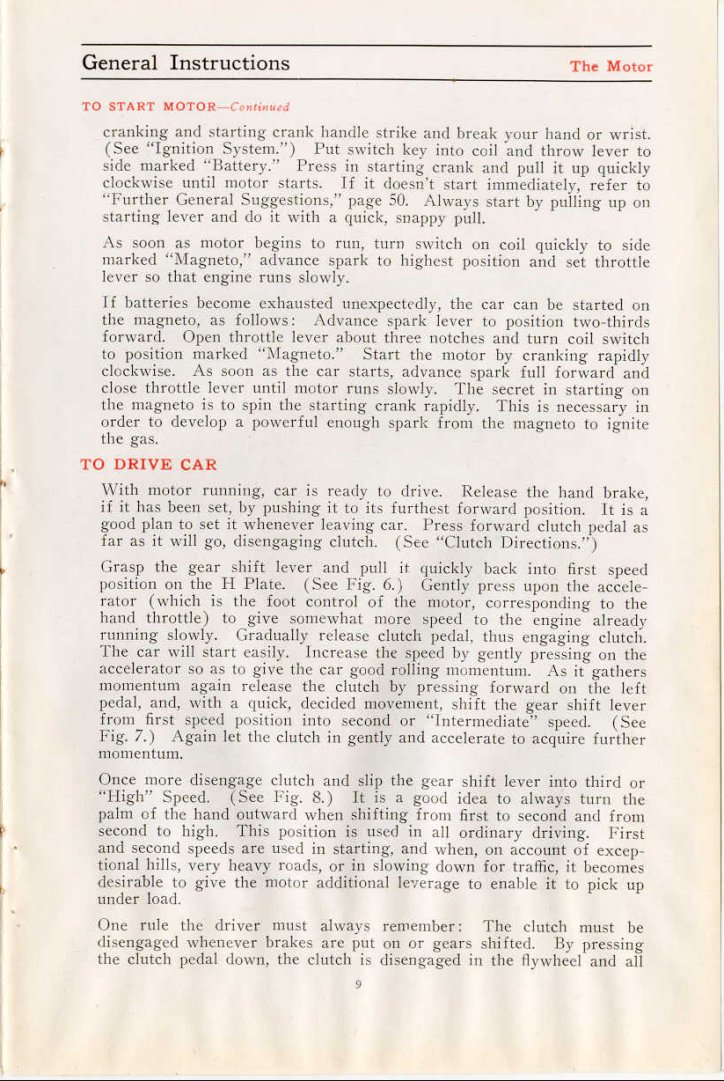

This is page 9 of the Information manual. Includes continuation of the section "To Start Motor", and section "To Drive Car".

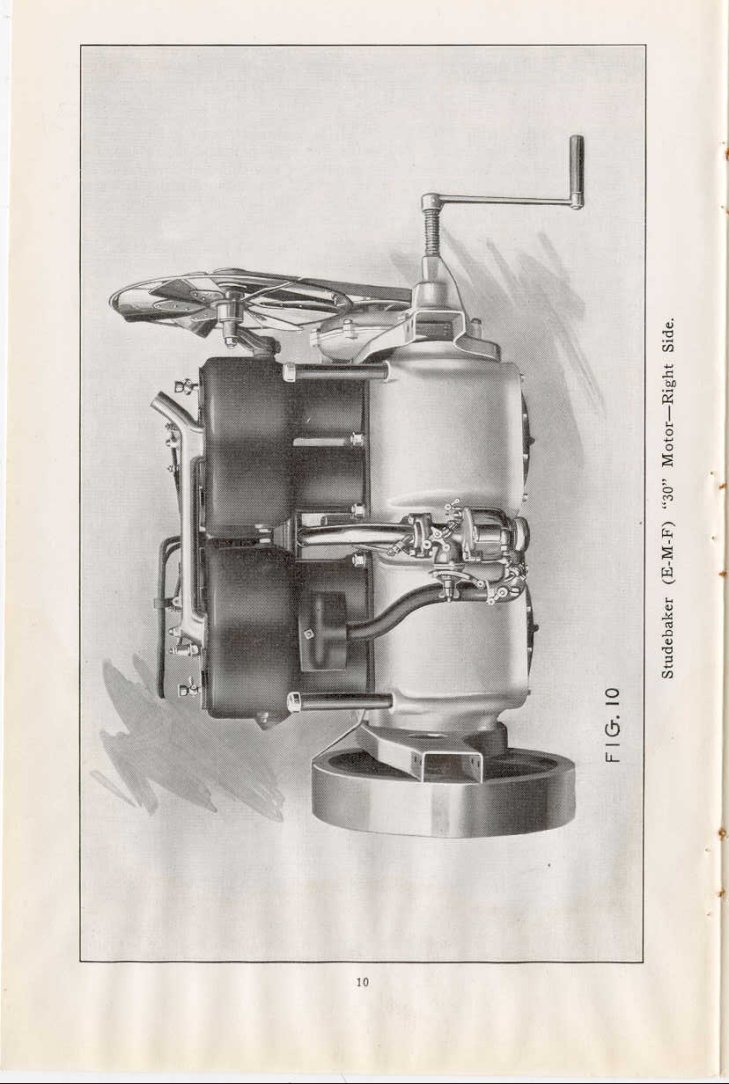

This is page 10 of the Information manual. This page includes Figure 10, "Studebaker (E-M-F) "30" Motor-Right Side".

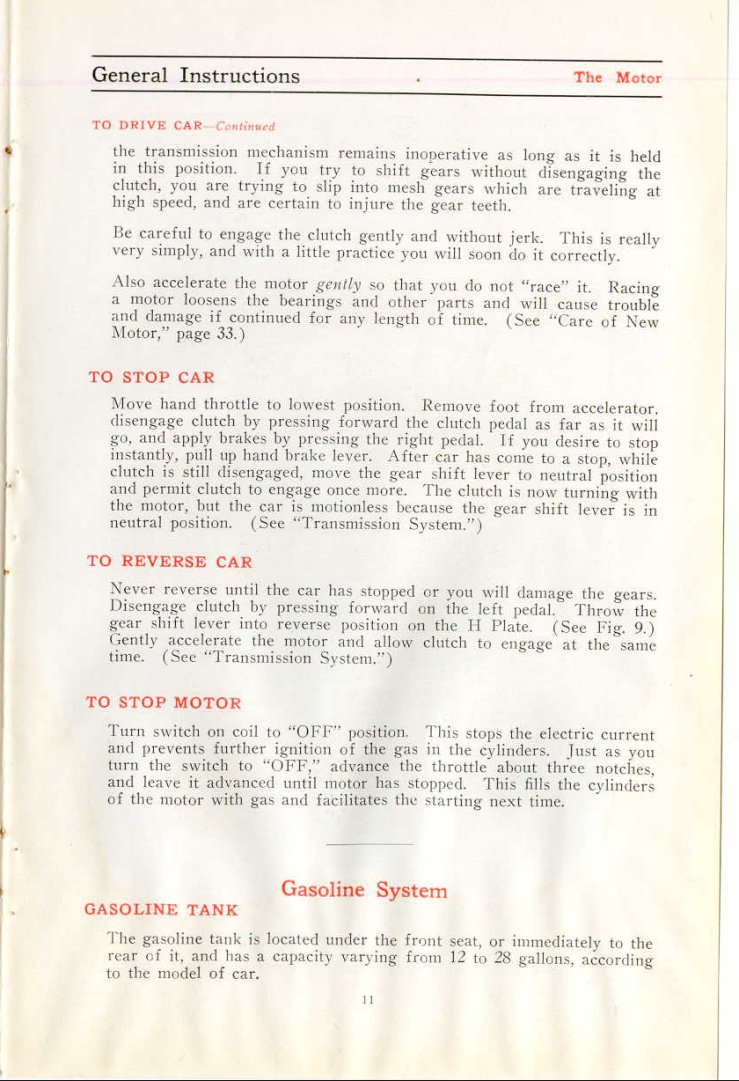

This is page 11 of the Information manual. Includes the continuation of the "To Drive Car" sectionand additional sections "To Stop Car", "To Reverse Car" and "To Stop Motor". New major section "Gasoline System" is started with a minor heading of "Gasoline Tank" which is continued on Page 13.

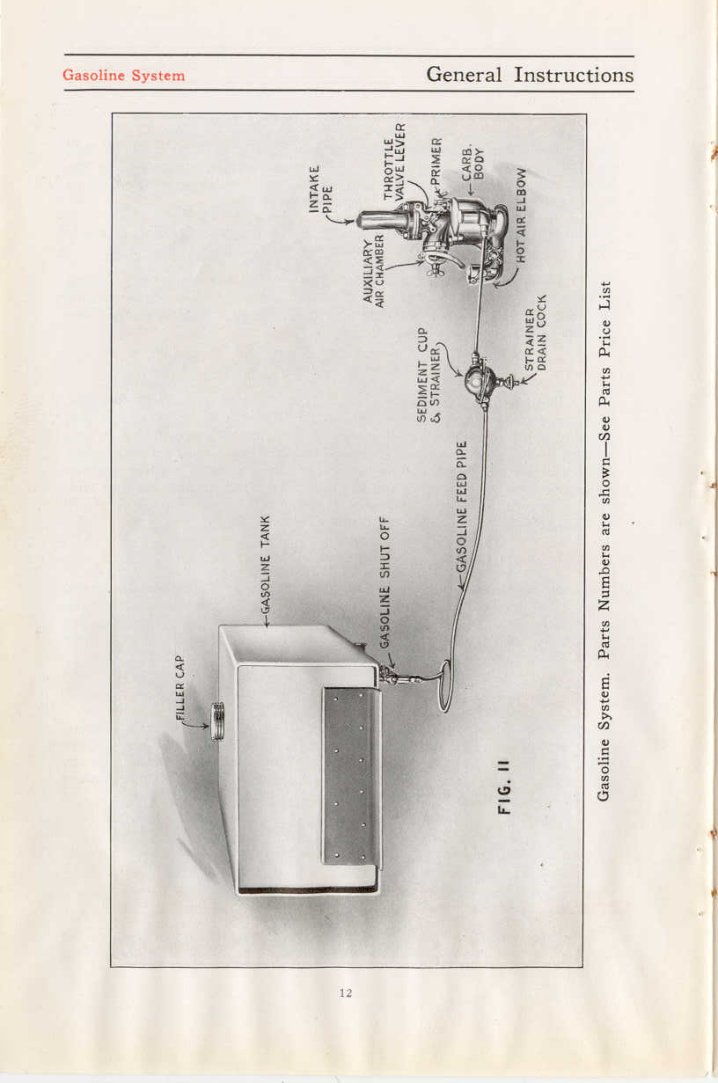

This is page 12 of the Information manual. This page includes Figure 11, "Gasoline System".

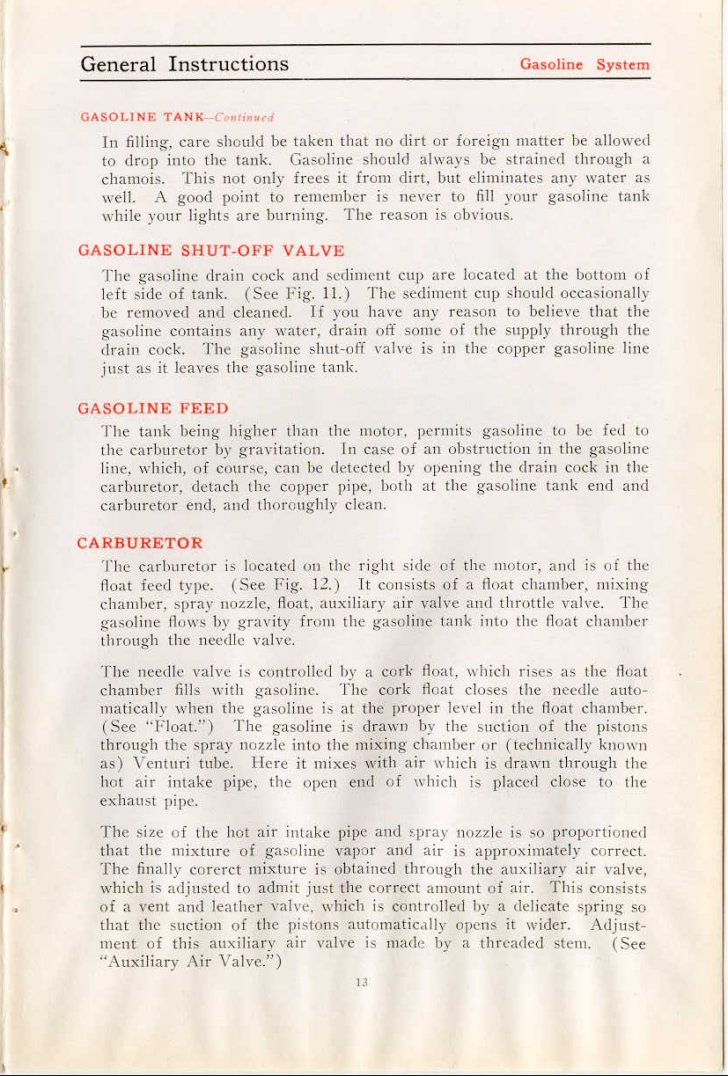

This is page 13 of the Information manual. Includes continuation of section "Gasoline Tank" and additional sections "Gasoline Shutoff Valve", "Gasoline Feed" and "Carburator".

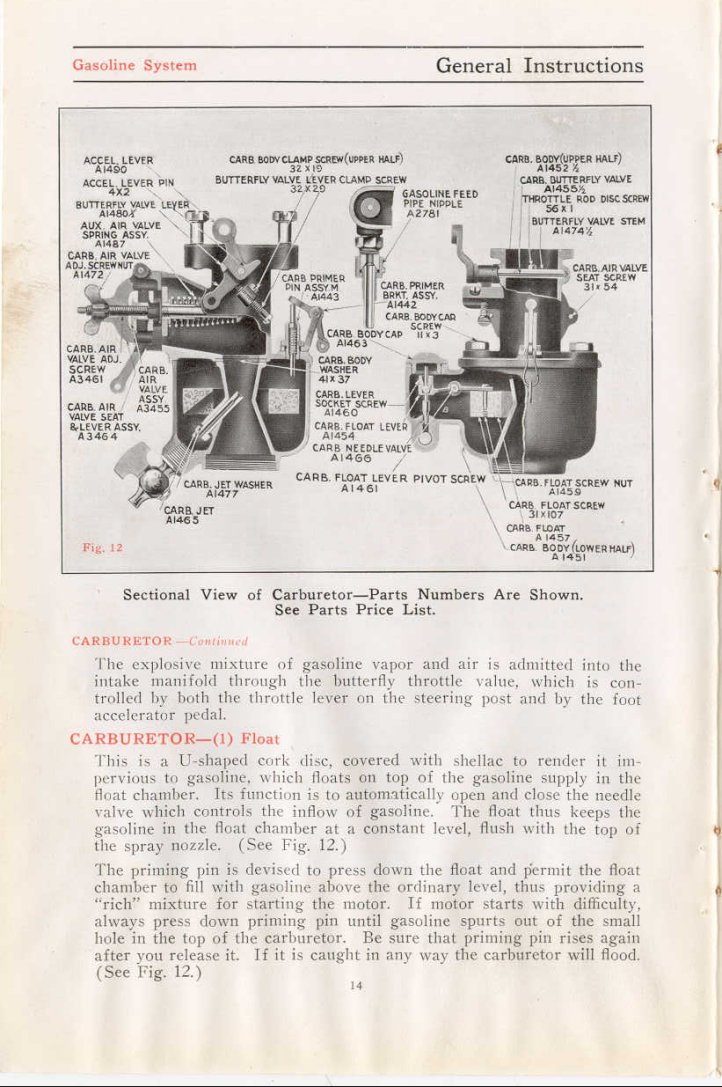

This is page 14 of the Information manual. Includes Figure 12, "Sectional View of Carburator", the continuation of the "Carburator" section and the section "Carburator-(1) Float".

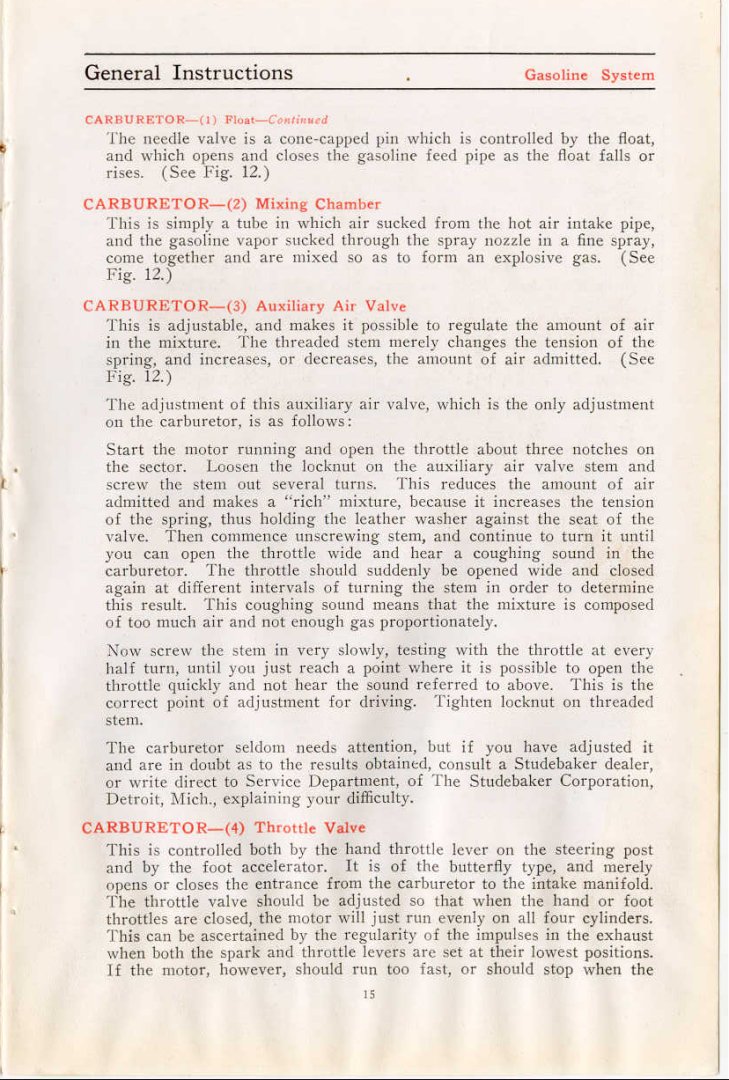

This is page 15 of the Information manual. This page includes the continuation of the "Carburator-(1) Float" section and additional sections "Carburator-(2) Mixing Chamber", "Carburator-(3) Auxiliary Air Valve" and the start of "Carburator-(4) Throttle Valve" which is continued on page 16.

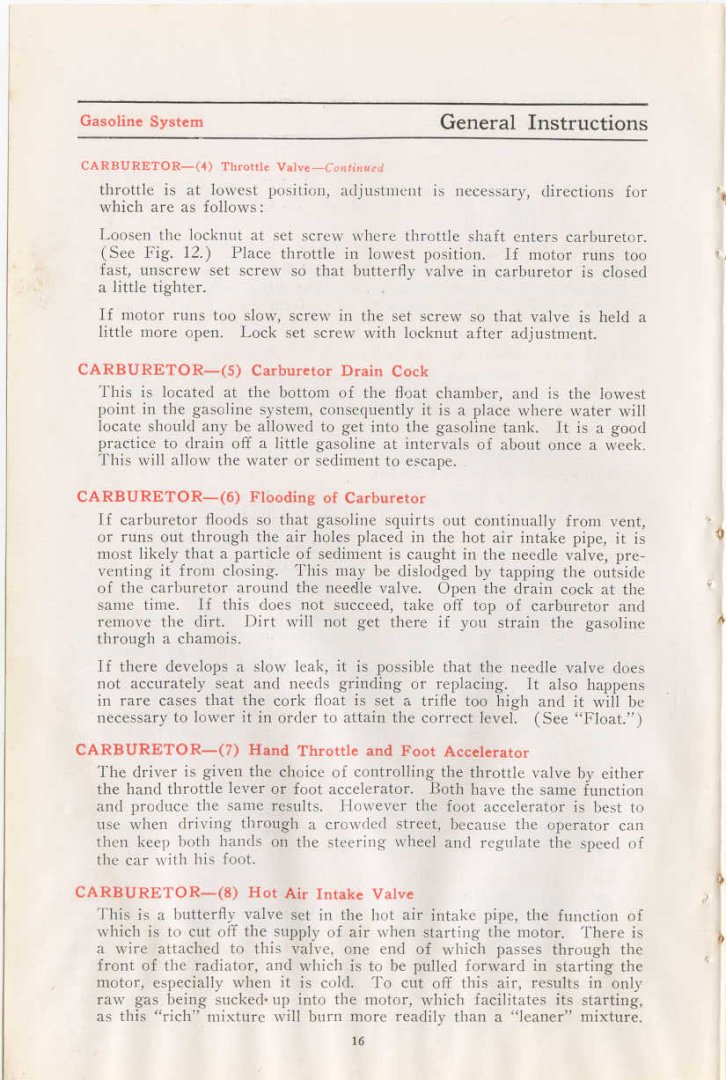

This is page 16 of the Information manual. This page includes the continuation of the "Carburator-(5) Throttle Valve" section and additional sections "Carburator-(5) Carburator Drain Cock", "Carburator-(6) Flooding of Carburator", "Carburator-(7) Hand Throttle and Foot Accelerator" and "Carburator-(8) Hot Air Intake Valve".

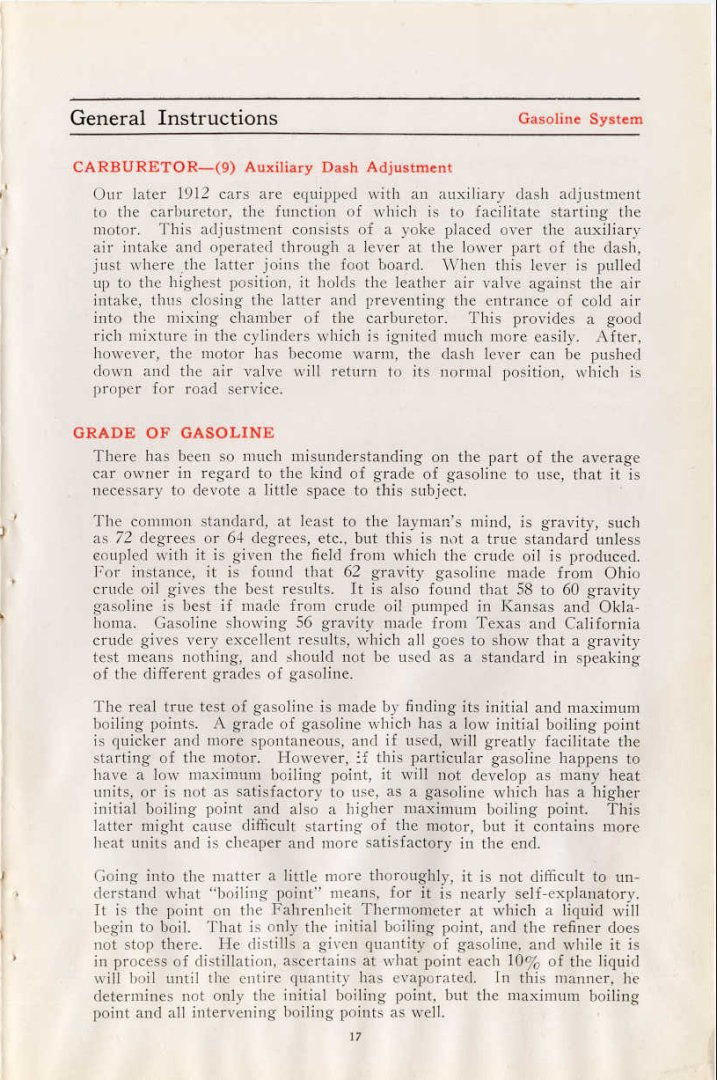

This is page 17 of the Information manual. This page includes the sections "Carburator-(9) Auxiliary Dash Adjustment" and "Grade of Gasoline" which is continued on page 18.

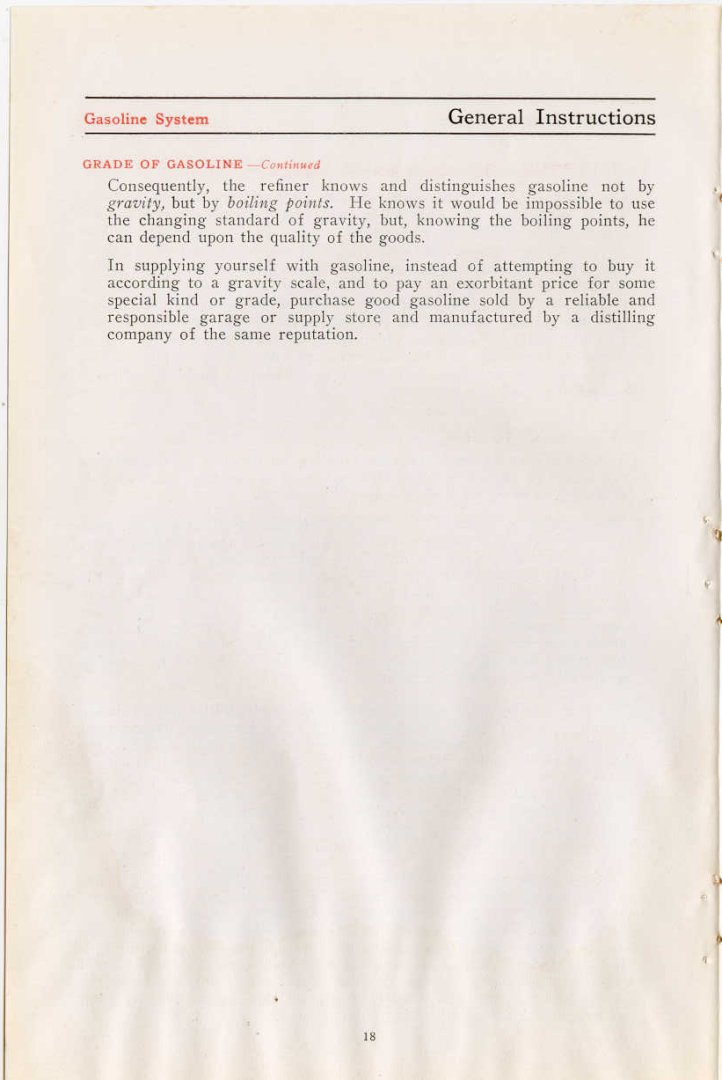

This is page 18 of the Information manual. This page contains the continuation of the "Grade of Gasoline" section.

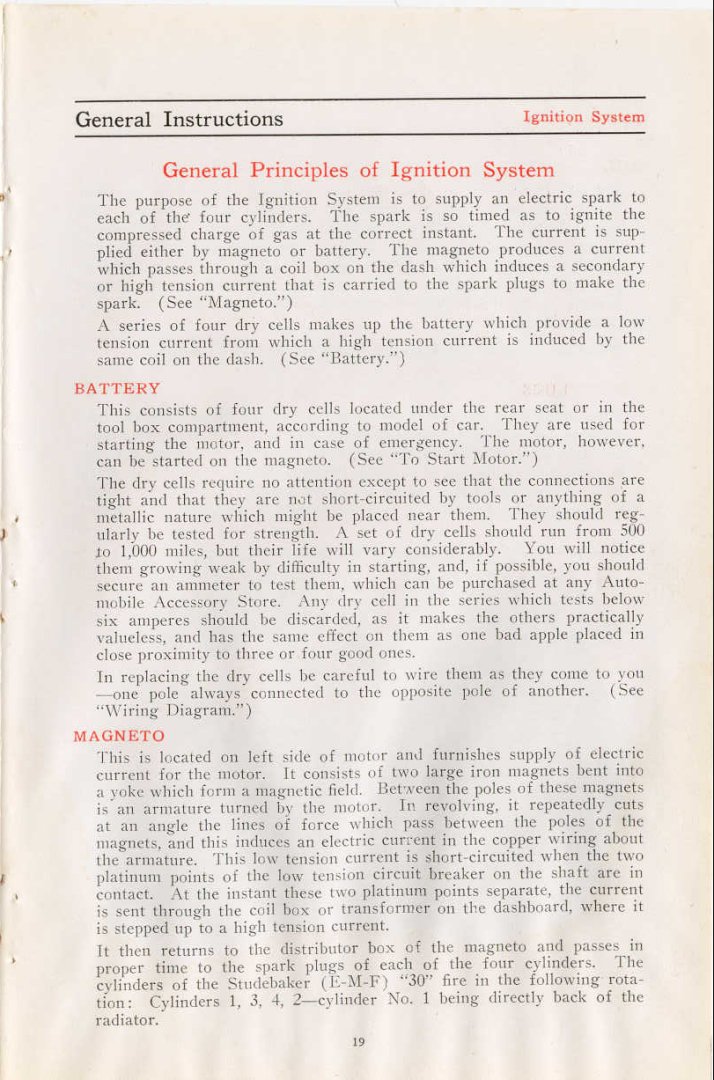

This is page 19 of the Information manual. This page starts the major section "General Principles of Ignition System" and includes minor sections "Battery" and "Magneto".

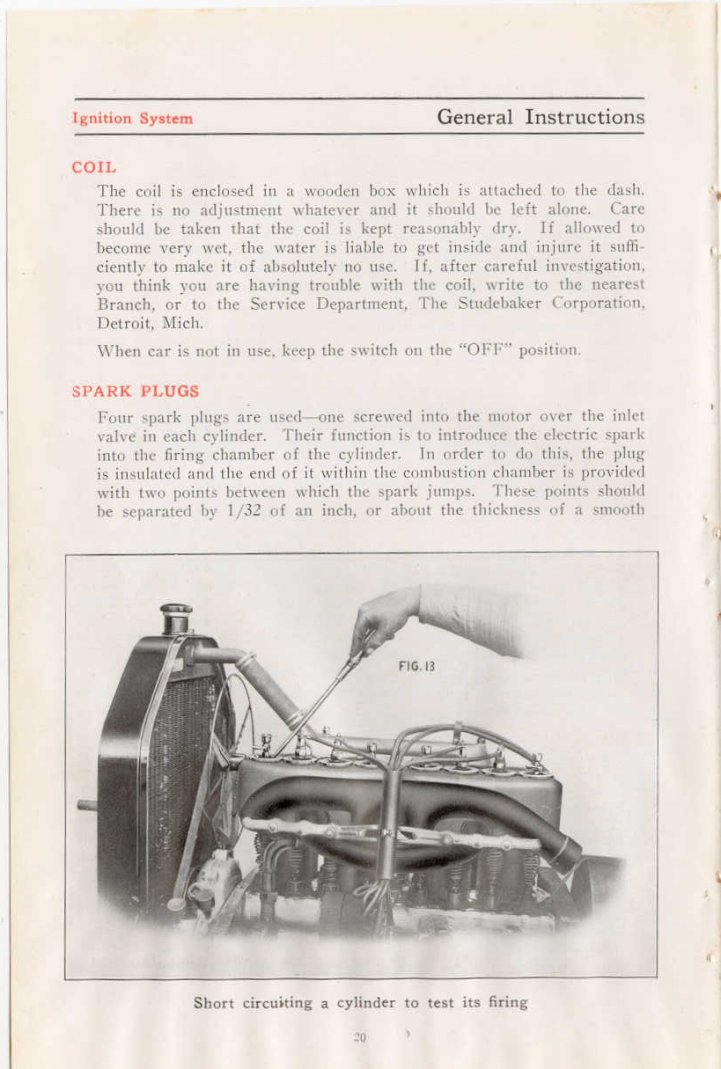

This is page 20 of the Information manual. This page includes the sections "Coil" and "Spark Plugs" and includes figure 13, "Short Circuiting a Cylinder to test its firing".

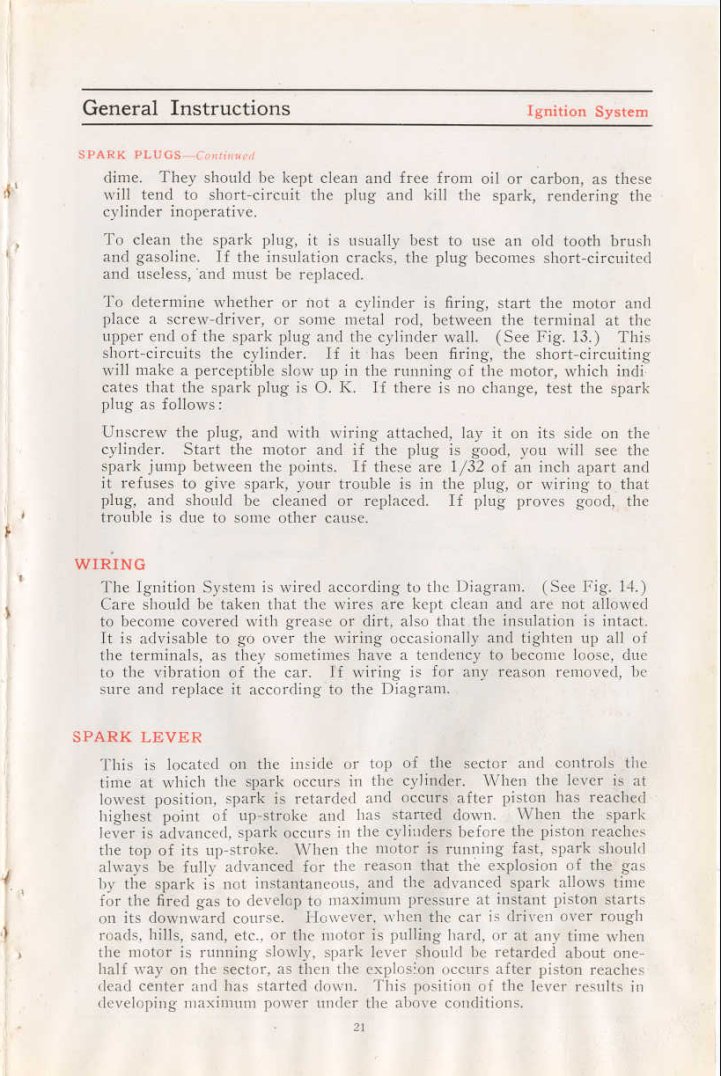

This is page 21 of the Information manual. This page includes the continuation of the "Spark Plugs" section and the additional sections "Wiring" and Spark Lever".
This is page 22 of the Information manual. This page contains Figure 14, "Wiring Diagram". NOTE: There is an additional wiring diagram that I put together. CLICK HERE to see this additional wiring diagram.

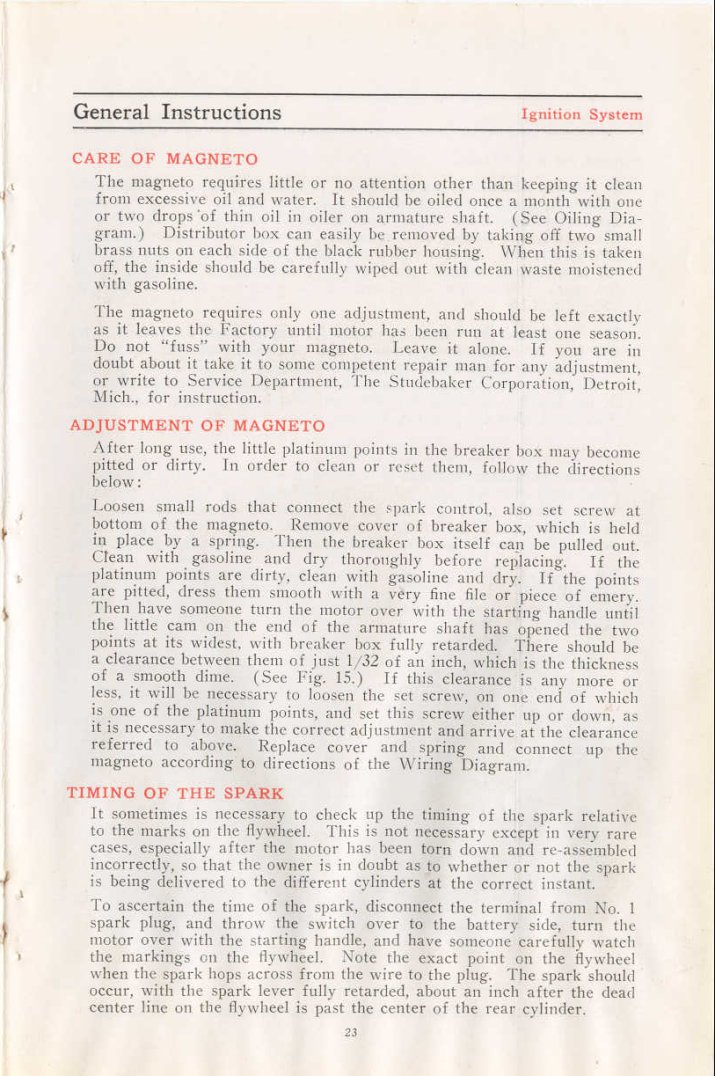

This is page 23 of the Information manual. This page containes the sections "Care of Magneto", "Adjustment of Magneto" and the start of the section "Timing of the Spark".

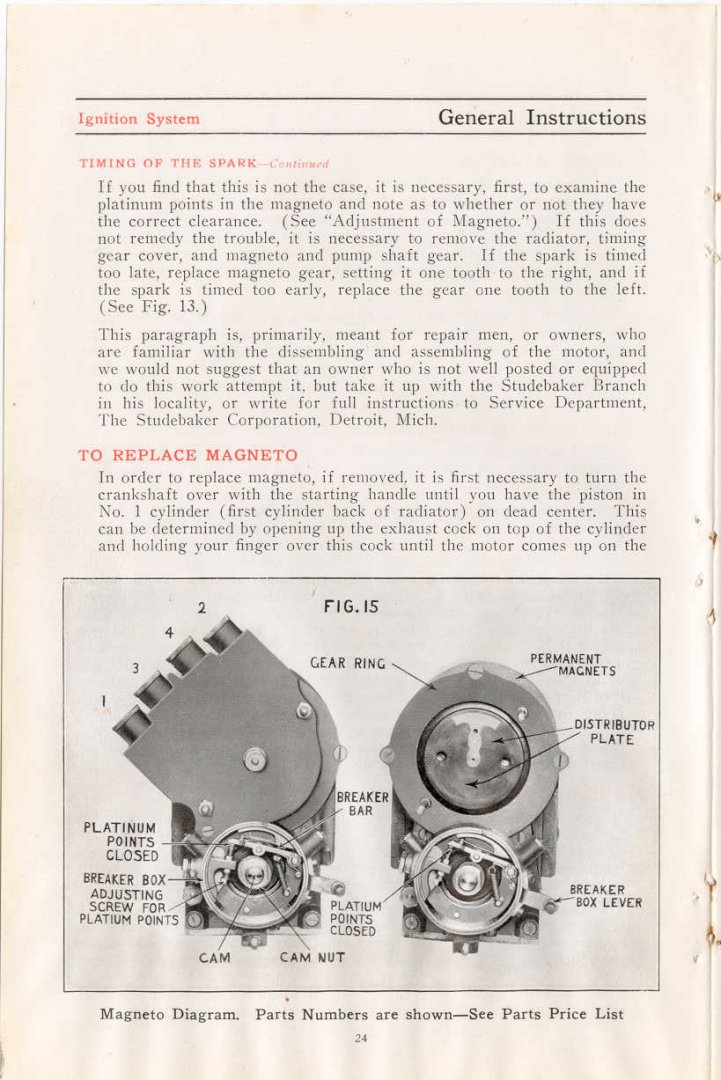

This is page 24 of the Information manual. This page includes the continuation of the section "Timing of the Spark" and the sart of the additional section " To Replace Magneto". It Also includes Figure 15, "Magneto Diagram". NOTE: This is a Splitdorf Model D Magneto

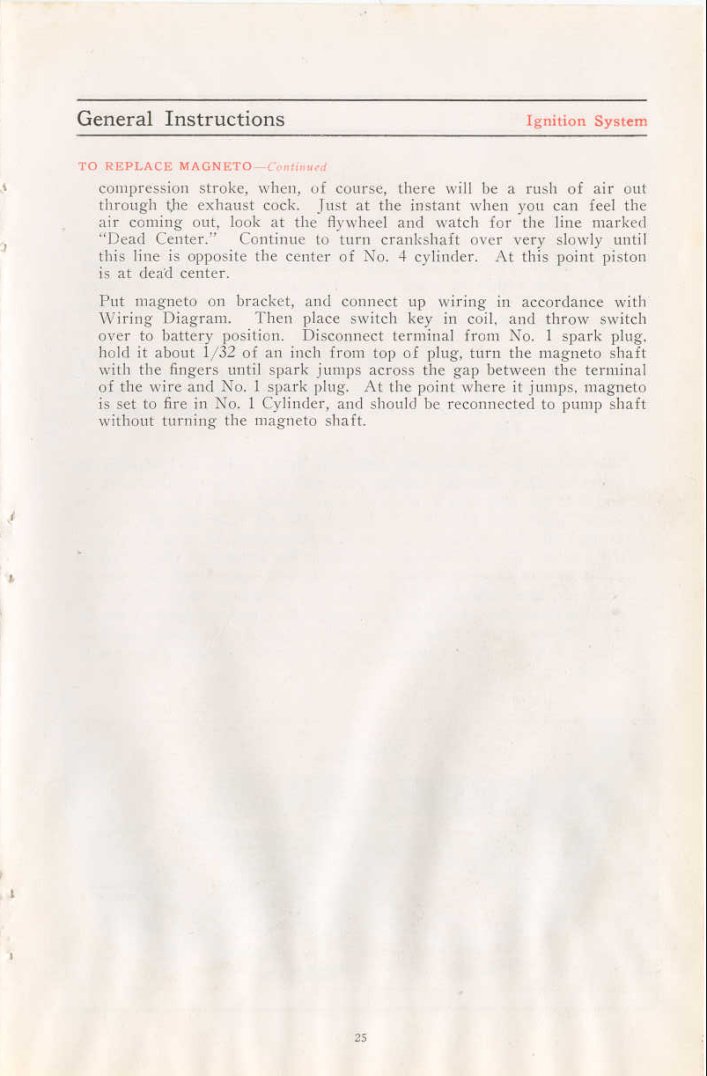

This is page 25 of the Information manual. This page includes the continuation of the section "To Replace Magneto".

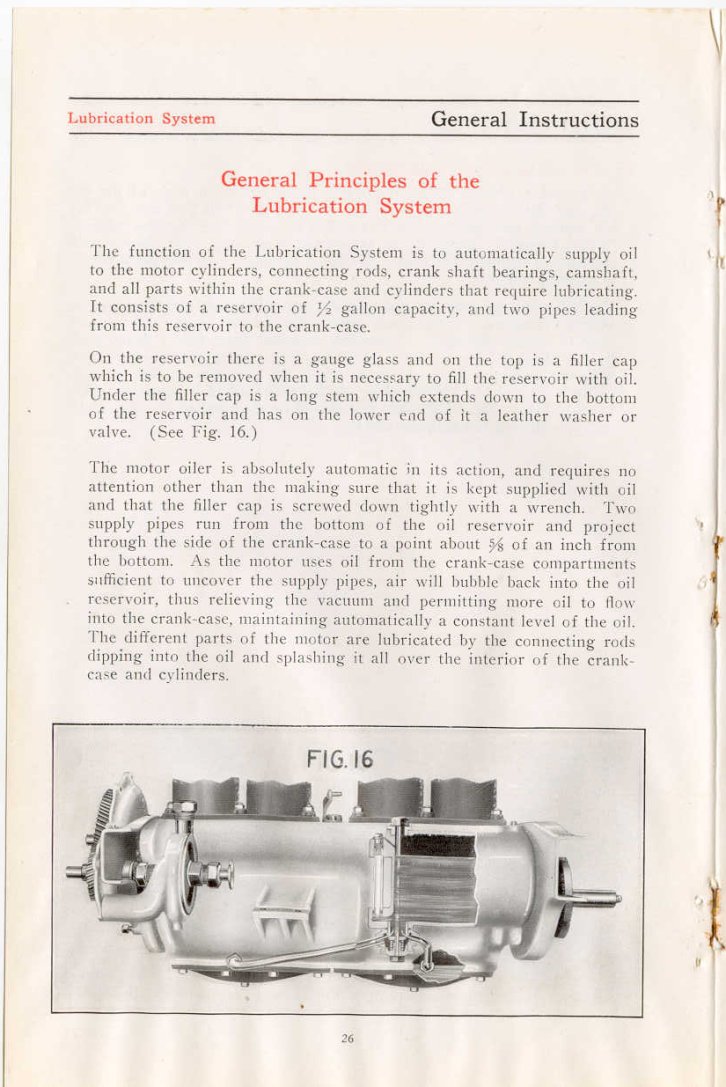

This is page 26 of the Information manual. This page contains the start of the major section "General Principles of the Lubrication System" and also includes Figure 16 (no name, but shows a cut away view of the oil resevoir on the passengers side of the engine).

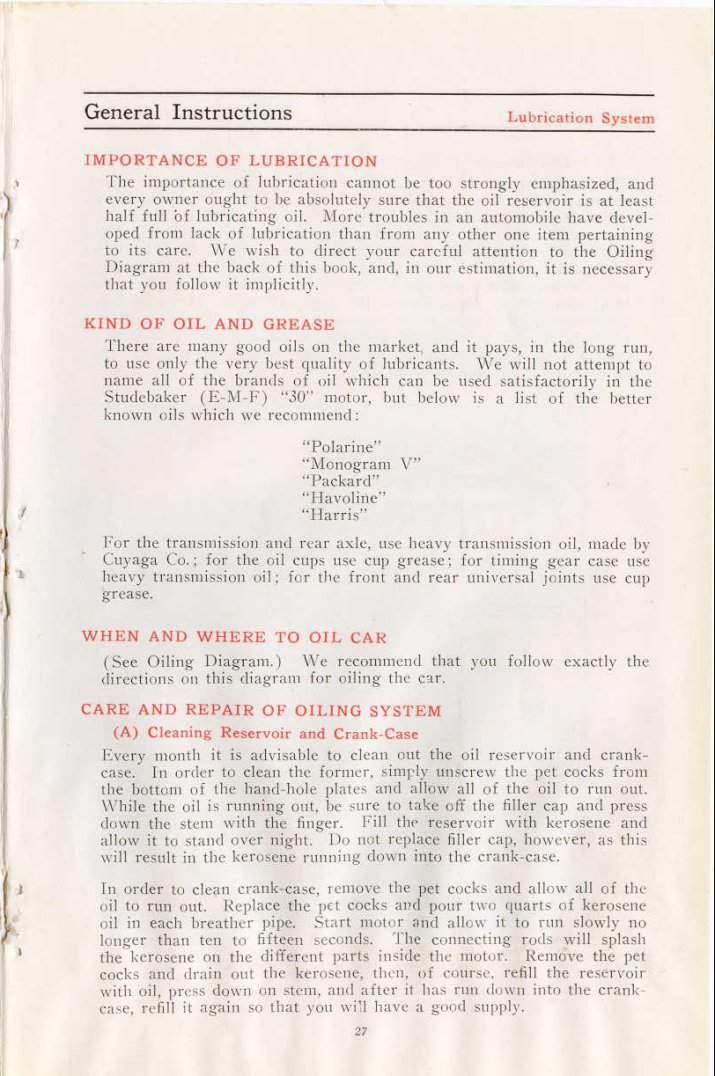

This is page 27 of the Information manual. This page includes sections "Importance of Lubrication", "Kind of oil and Grease", When and Where to Oil Car" and "Care and Repair of Oil System (A) Cleaning Resevior and Crank-Case".

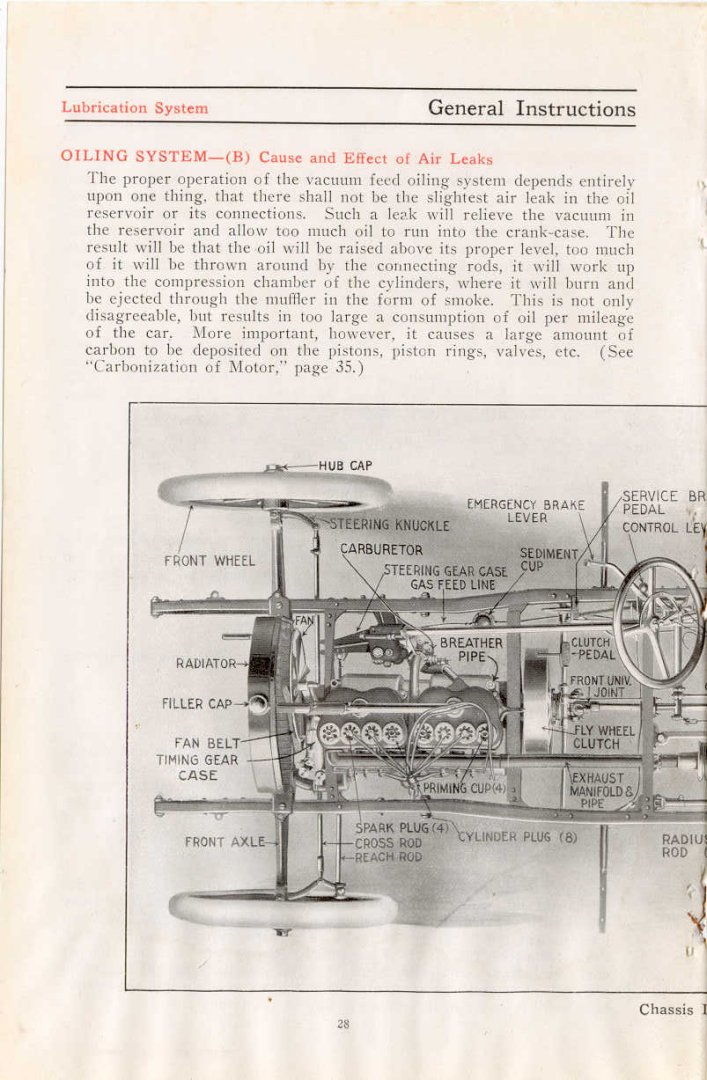

This is page 28 of the Information manual. This page contains the section "Oil System-(B) Cause and Effect of Air Leaks", and also includes the front part of the chassis diagram. NOTE: This is the centerfold page. The Chassis picture can be seen in whole in the Photo Archive For 1912. CLICK HERE to see just the chassis diagram.

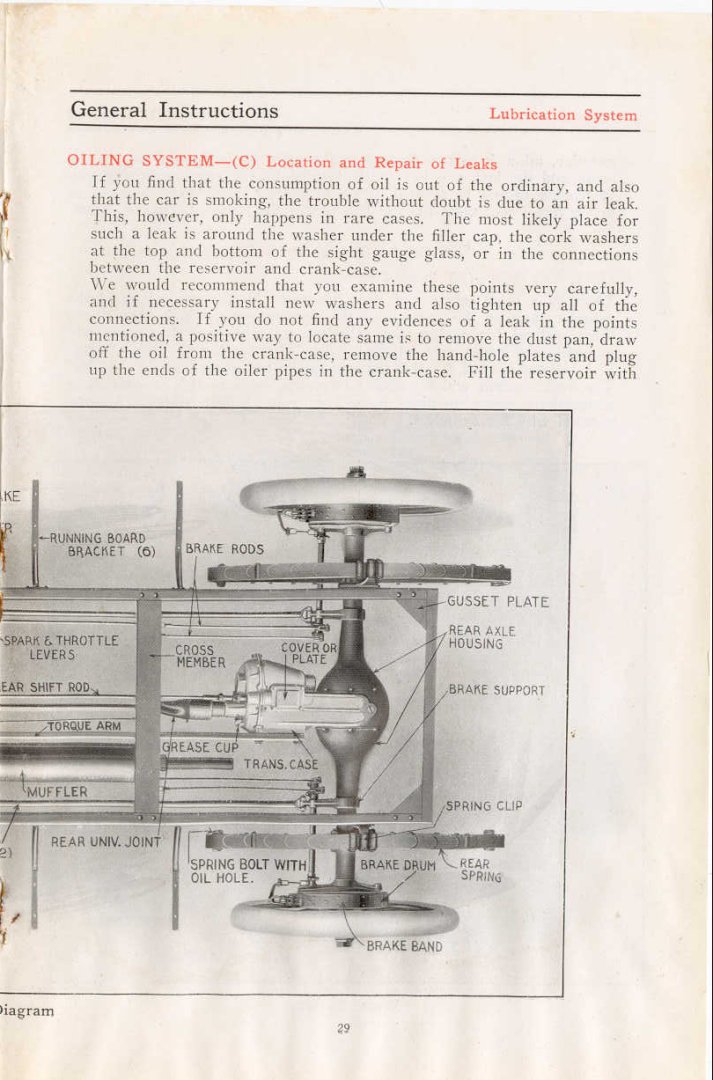

This is page 29 of the Information manual. This page includes the section "Oiling System-(C) Location and Repair of leaks" and also includes the back half of the Chassis photo. See note for page 28.

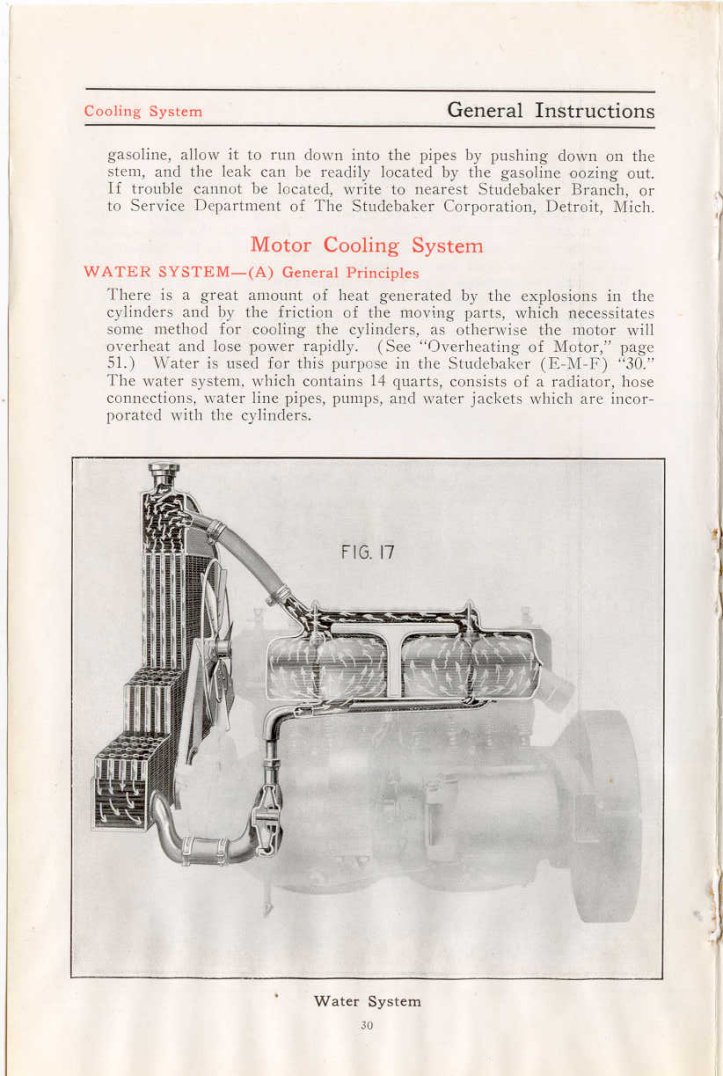

This is page 30 of the Information manual. This page includes the continuation of the section "Oiling System-(C) Location and Repair of leaks", the start of the major section "Motor Cooling System" and the minor section "Water System-(A) General Principles". This page also includes Figure 17, "Water System".

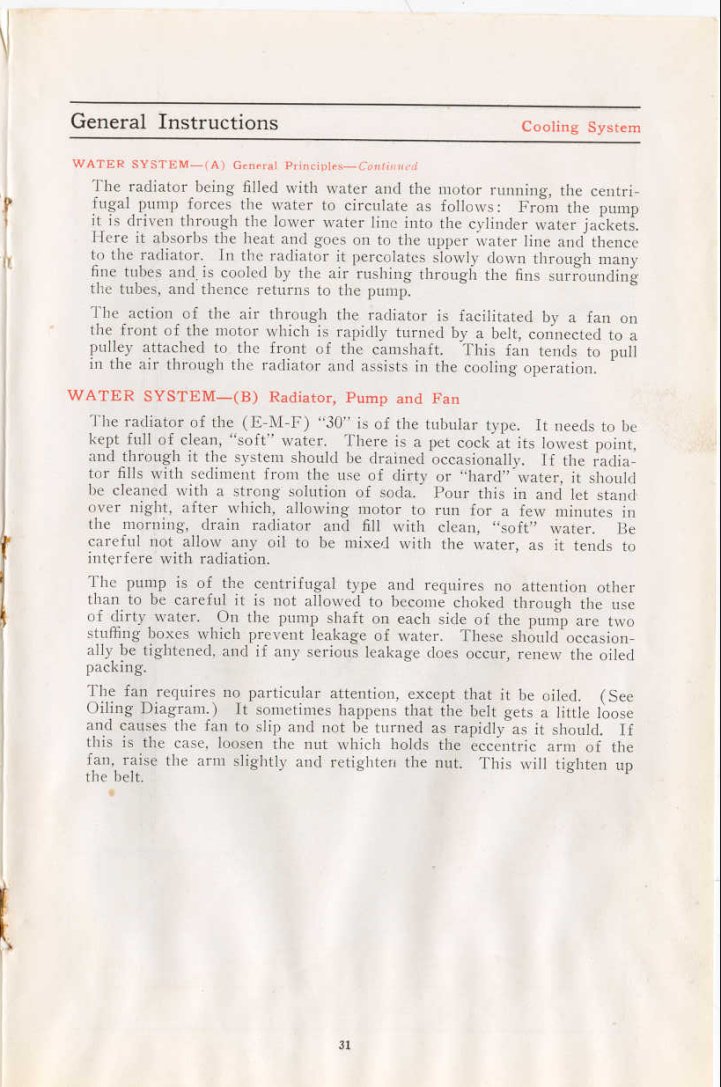

This is page 31 of the Information manual. This page includes the continuation of the seciton "Water System-(A) General Principles", and the additional section "Water System-(B) Radiator, Pump and Fan".

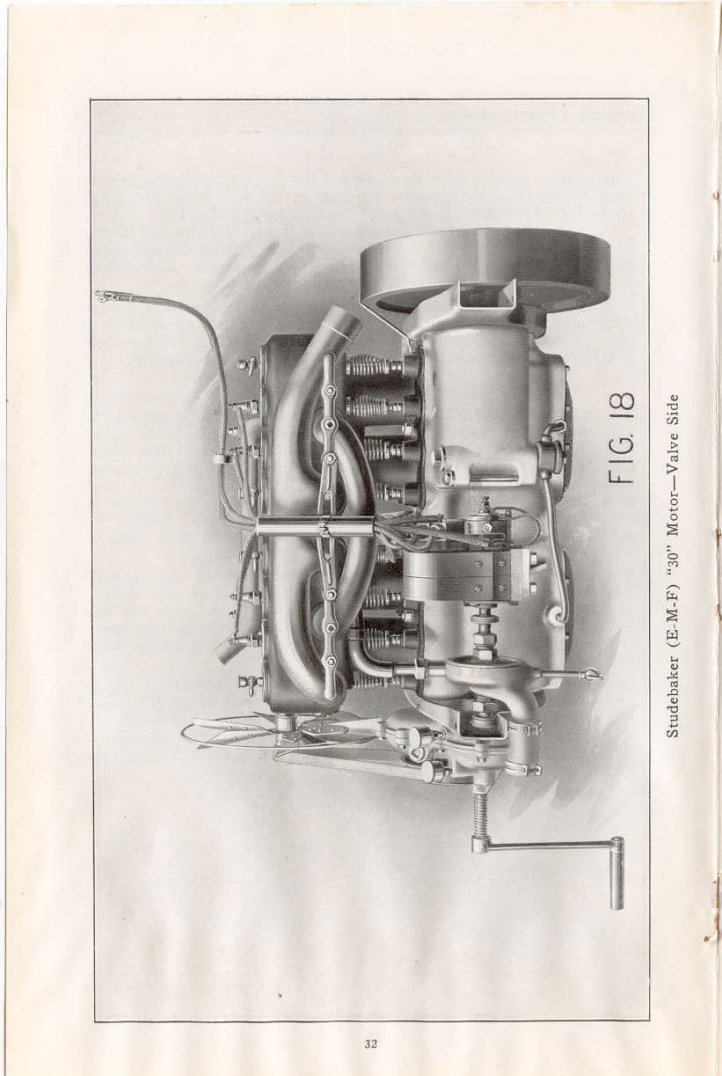

This is page 32 of the Information manual. This page includes Figure 18, "Studebaker (E-M-F) "30" Motor - Valve Side".

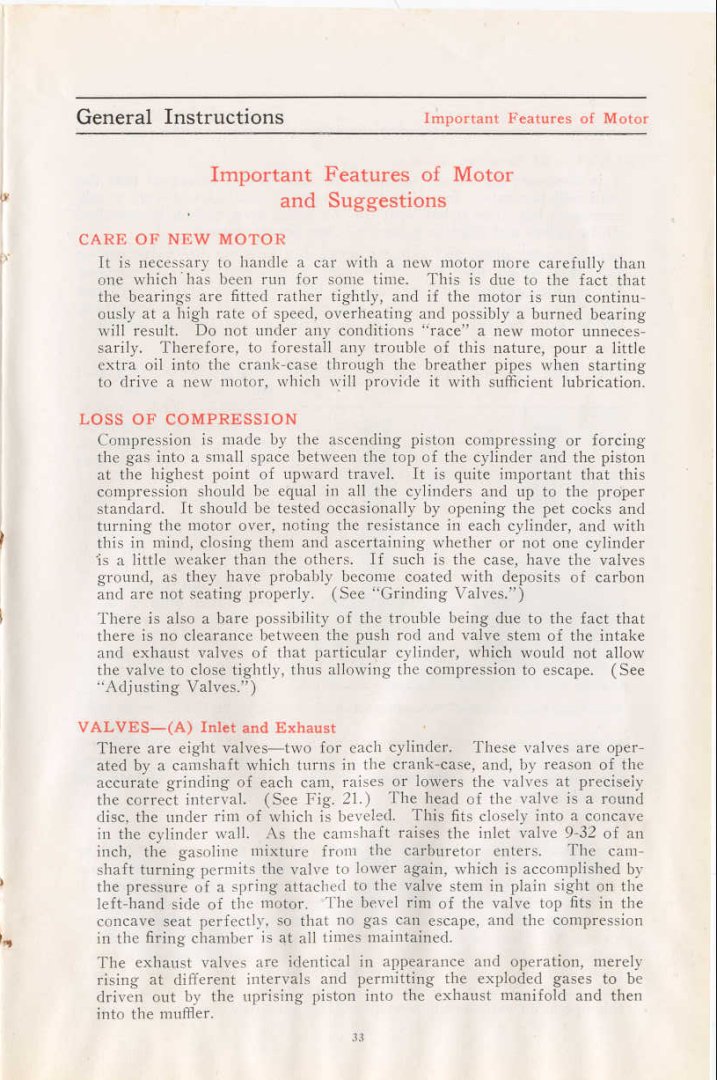

This is page 33 of the Information manual. This page includes the start of the Major section "Important Features of Motor and Suggestions" with the minor sections "Care of New Motor", Loss of Compression" and "Valves-(A) Inlet and Exhaust".

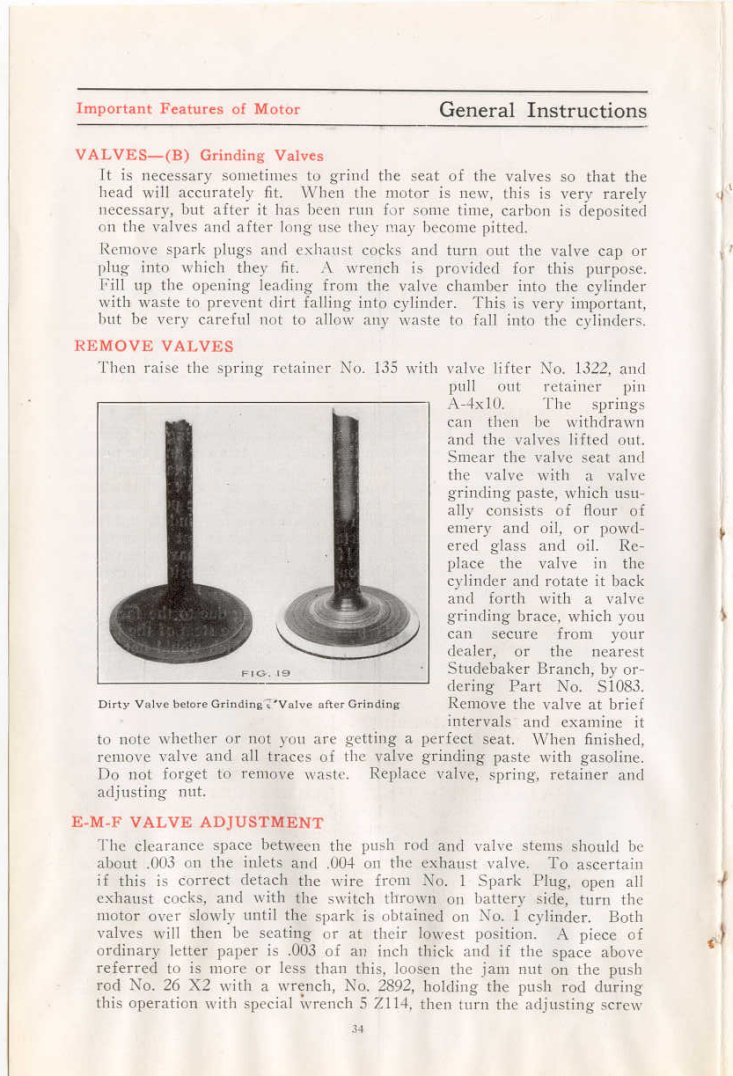

This is page 34 of the Information manual. This page includes secitons "Valves-(B) Grinding Valves", "Remove Valves" and "E-M-F Valve Adjustment". This page also includes Figure 19, "Dirty Valve Before Grinding and Valve after Grinding".

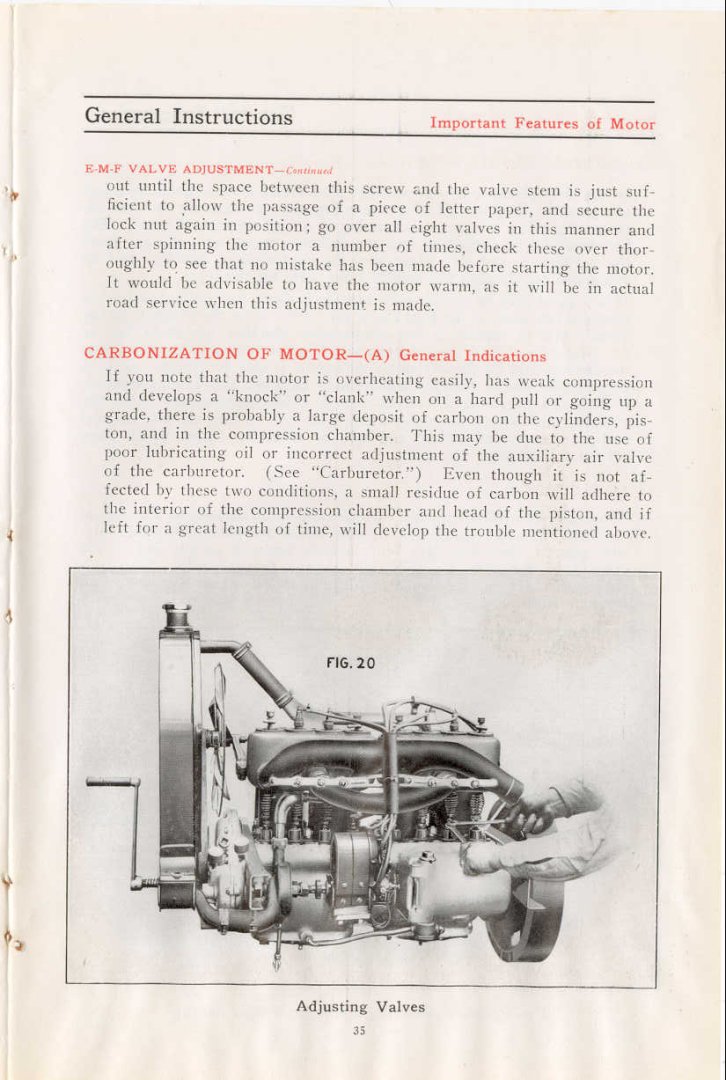

This is page 35 of the Information manual. This page includes the continuation of the section "E-M-F Valve Adjustment" and the additional section "Carbonization of Motor-(A) General Indications". It also includes Figure 20, "Adjusting Valves".

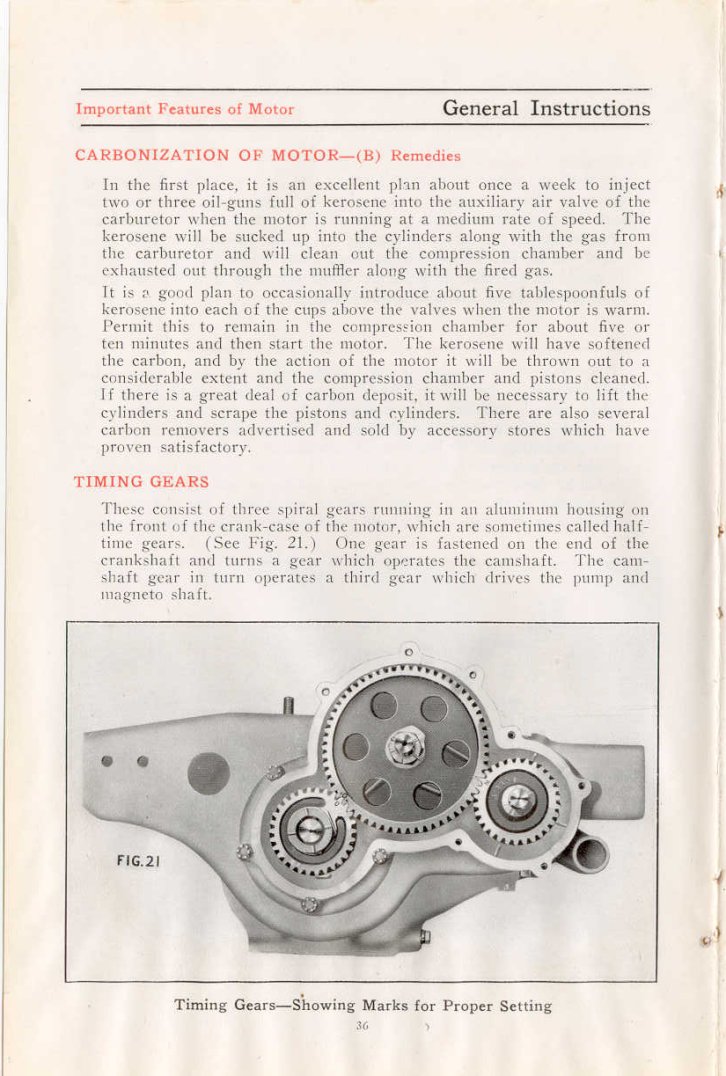

This is page 36 of the Information manual. This page includes the sections "Carbonization of Motor-(B) Remedies" and "Timing Gears". This page also contains Figure 21, "Timing Gears-Showing Marks for Proper Setting".

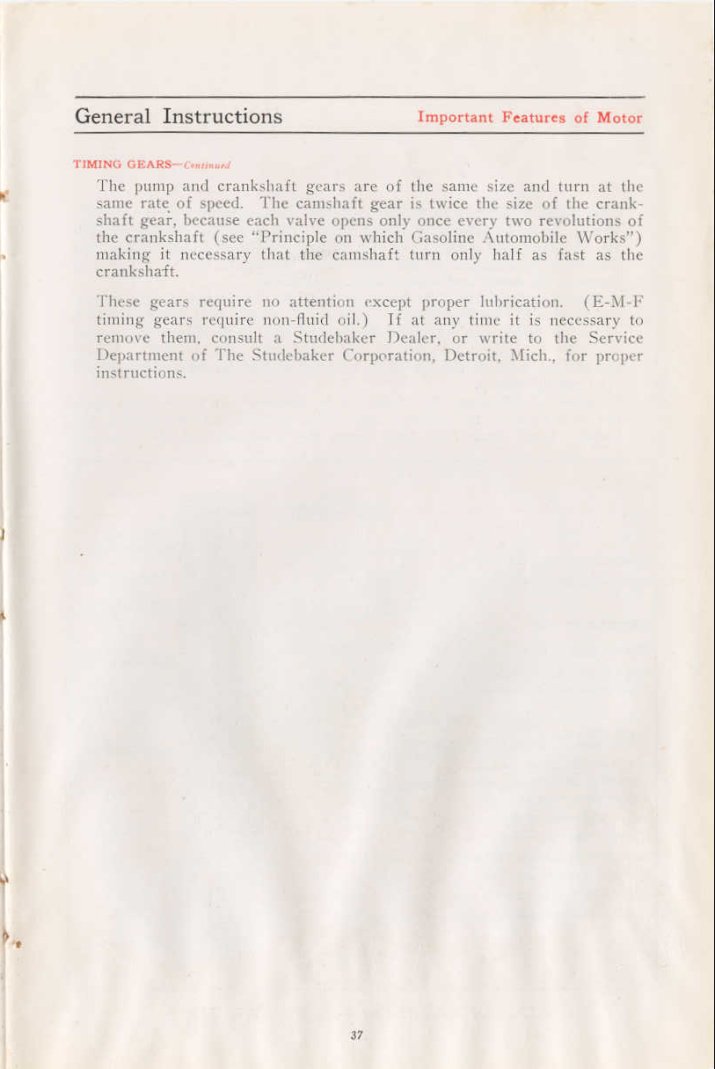

This is page 37 of the Information manual. Includes the conclusion of the section "Timing Gears".

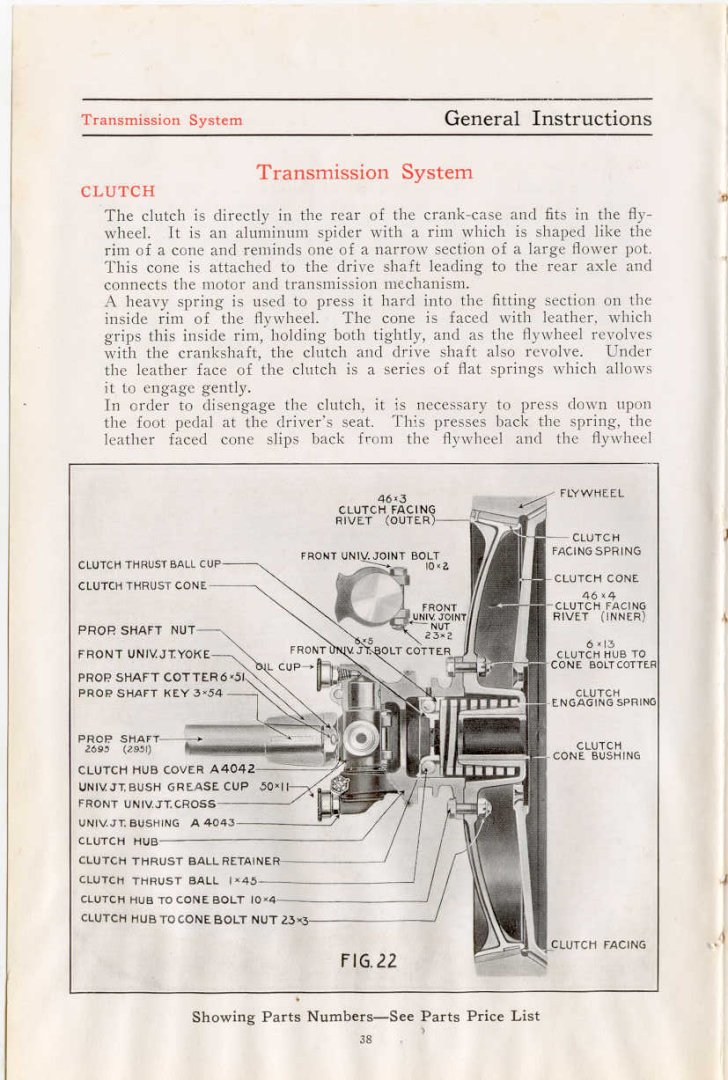

This is page 38 of the Information manual. This page starts the major section of "Transmission" with the minor section of "Clutch". Figure 22 is also included showing a cut away picture of the clutch with parts labeled.

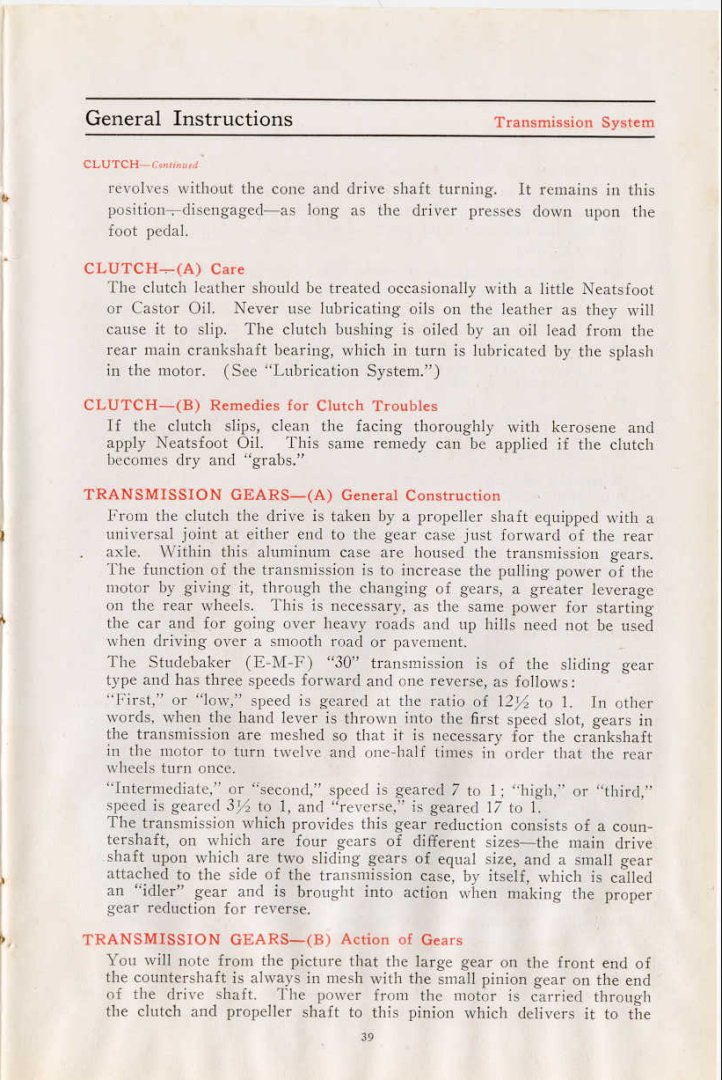

This is page 39 of the Information manual. This page starts with the continuation of the "Clutch" section with the additional sections "Clutch-(A) Care", "Clutch-(B) Remedies for Clutch Troubles", Transmission-(A) General Construction" and the start of the section "Transmission-(B) Action of Gears".

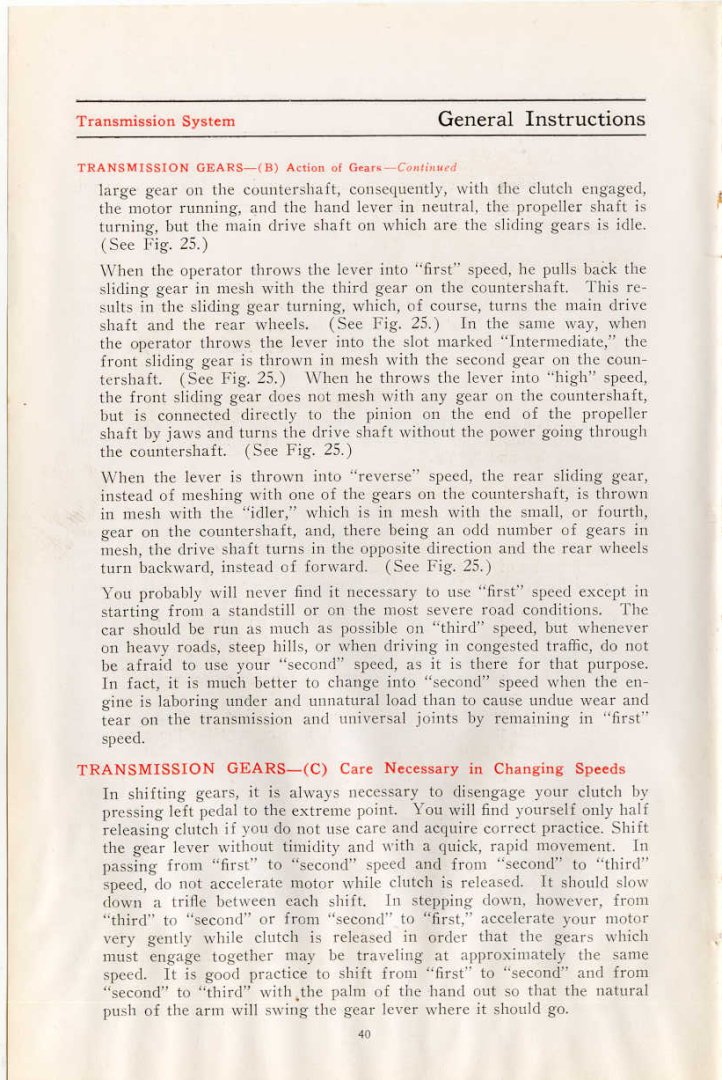

This is page 40 of the Information manual. This page starts with the continuation of the section "Transmission-(B) Action of Gears" and also contains the seciton "Transmission-(C) Care Necessary in Changing Speed".

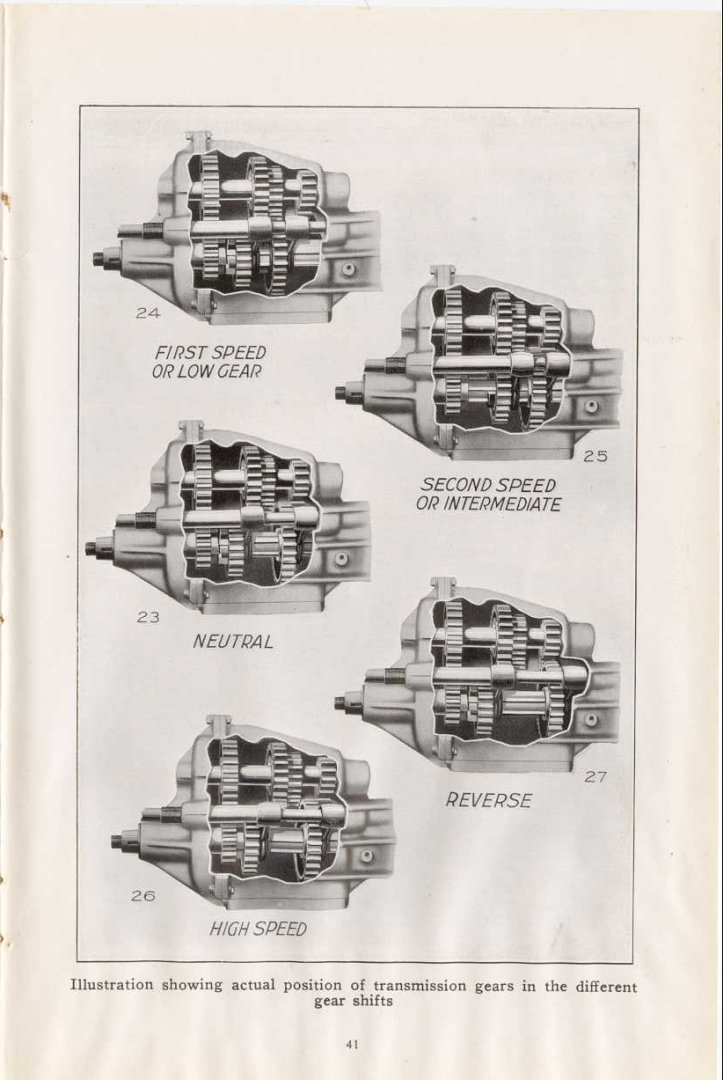

This is page 41 of the Information manual. This page contains Figures 23, 24 25 26 and 27 and is entitled "Illustration Showing Actual Possision of transmission Gears in the Different Gear Shifts".

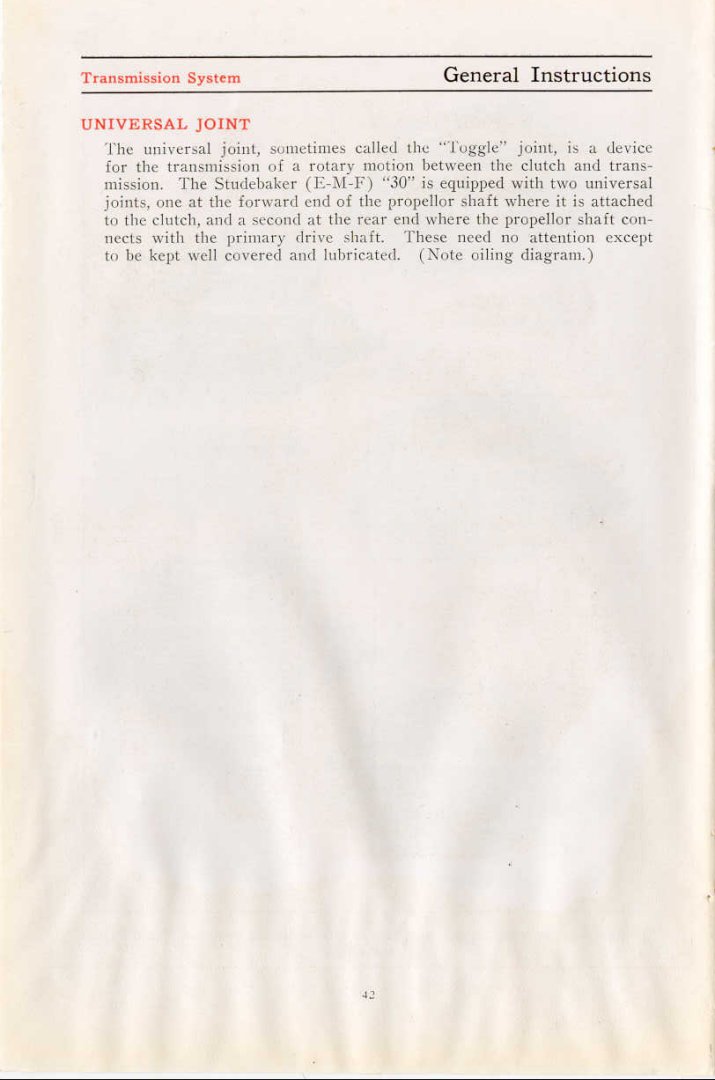

This is page 42 of the Information manual. This page contains the section called "Universal Joint".

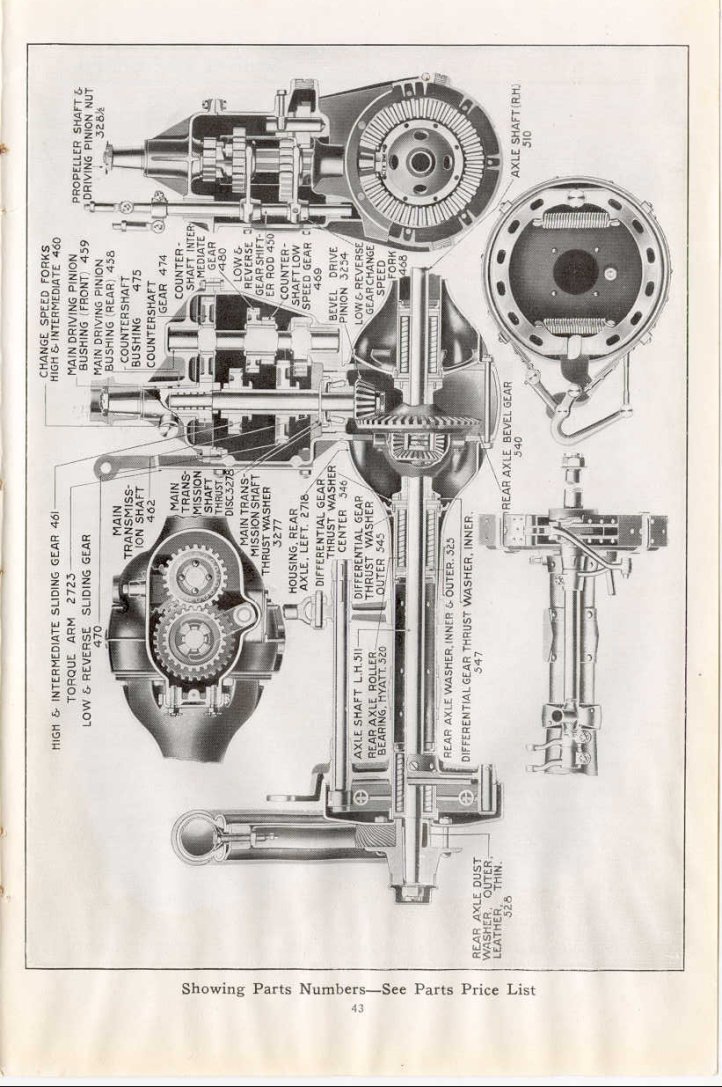

This is page 43 of the Information manual. This page includes a cut-a-way drawing of the rear end with all the parts labled. This should be Figure 28.

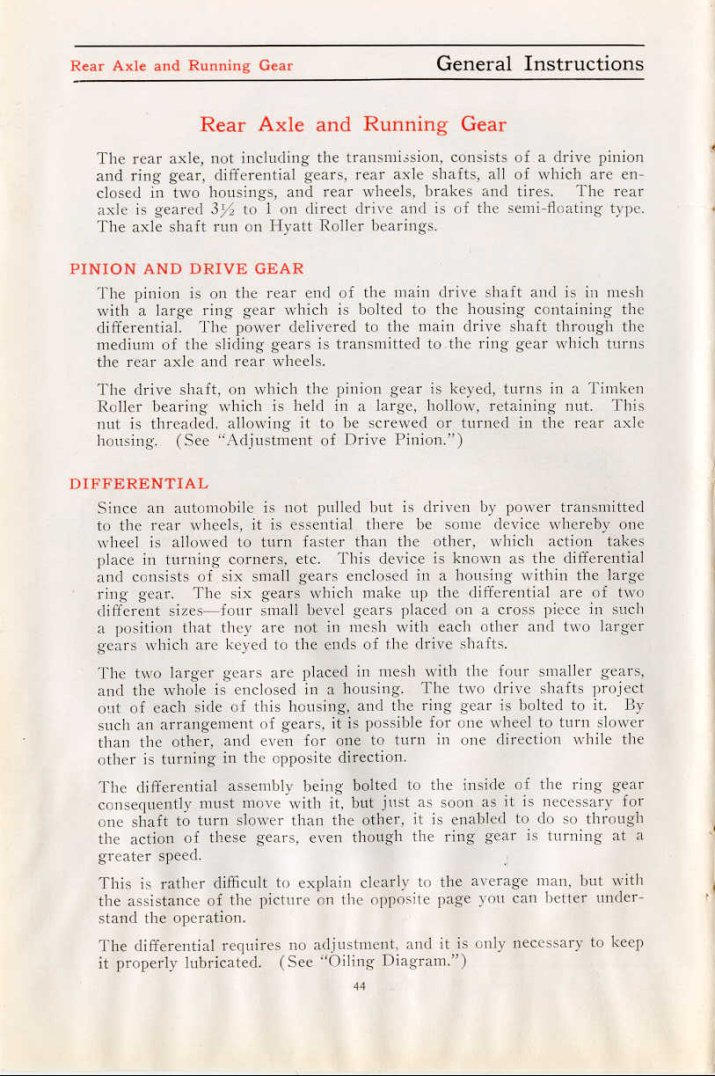

This is page 44 of the Information manual. This page includes the major section "Rear Axel and Running Gear" and the minor sections "Pinion and Drive Gear" and "Differential".

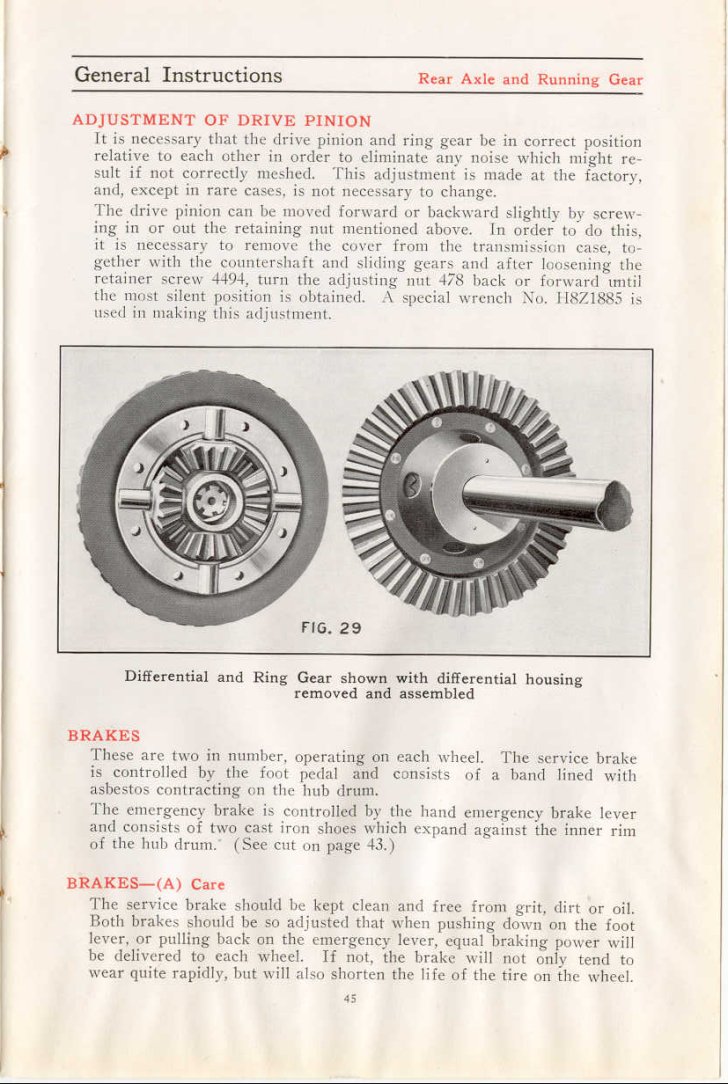

This is page 45 of the Information manual. This page includes the section "Adjustment of Drive Pinion", "Brakes" and the minor section "Brakes-(A) Care" and also includes Figure 29, "Differential and Ring Gear Shown with Differential Housing Removed and Assembled".

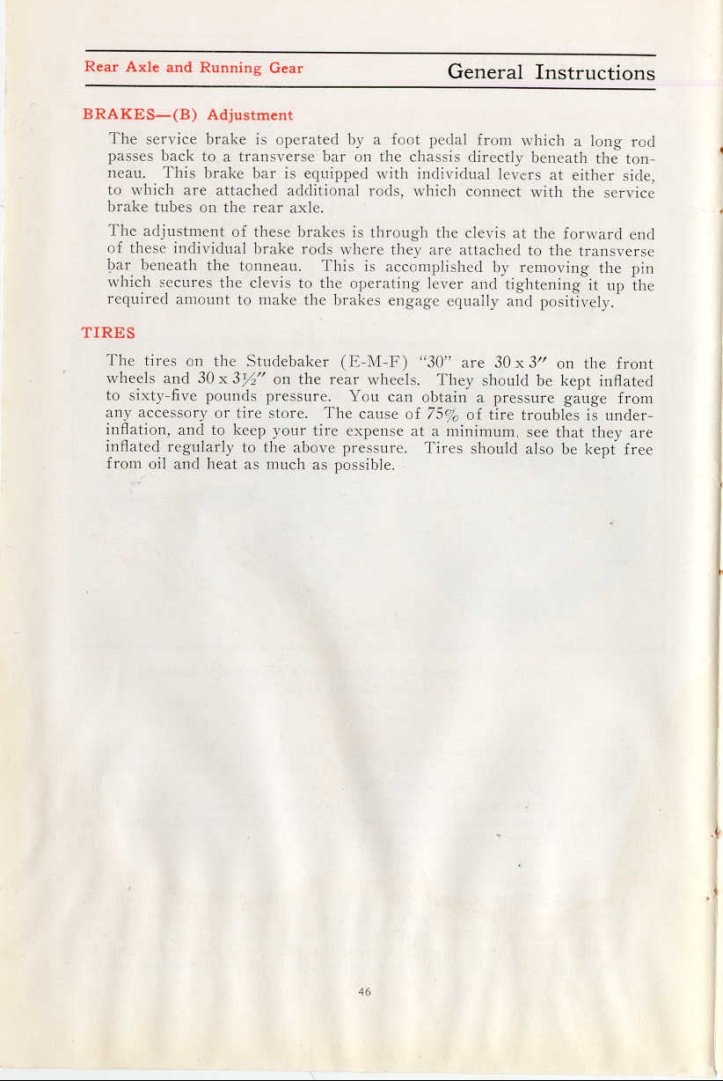

This is page 46 of the Information manual. This page includes the sections "Brakes-(B) Adjustment" and the section "Tires".

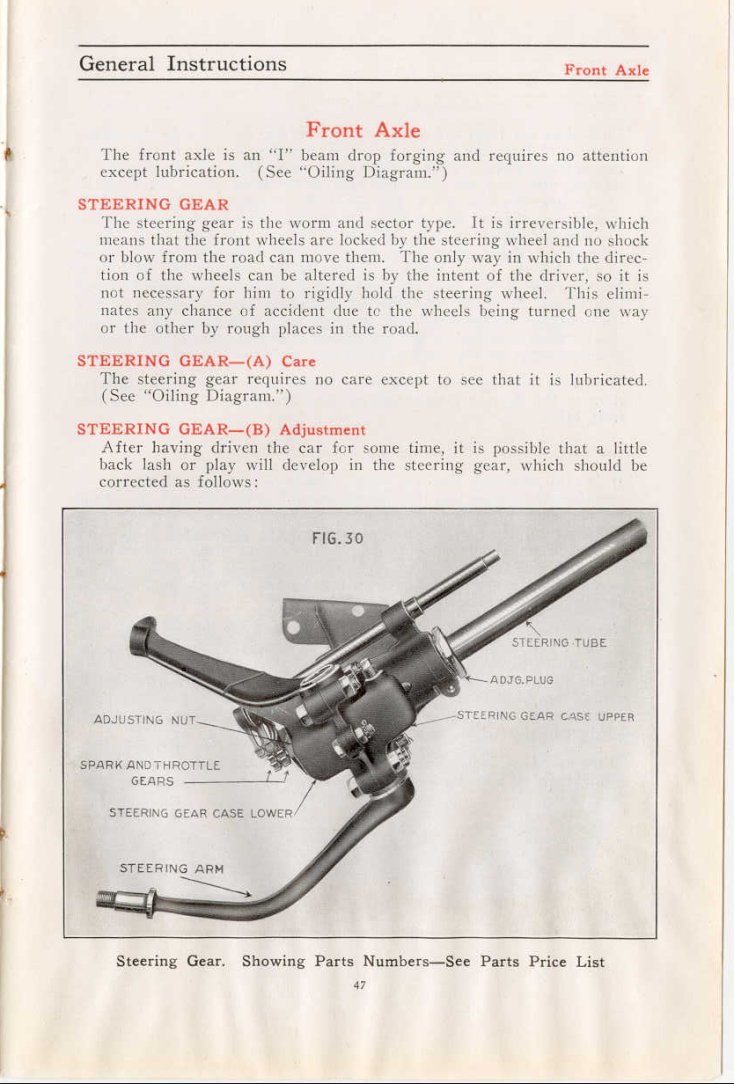

This is page 47 of the Information manual. Includes major section "Front Axle" with minor sections "Steering Gear", "Steering Gear--(A) Care", and the start of "Steering Gear--(B) Ajustment". Also includes Figure 30, "Steering Gear. Showing Parts Numbers".

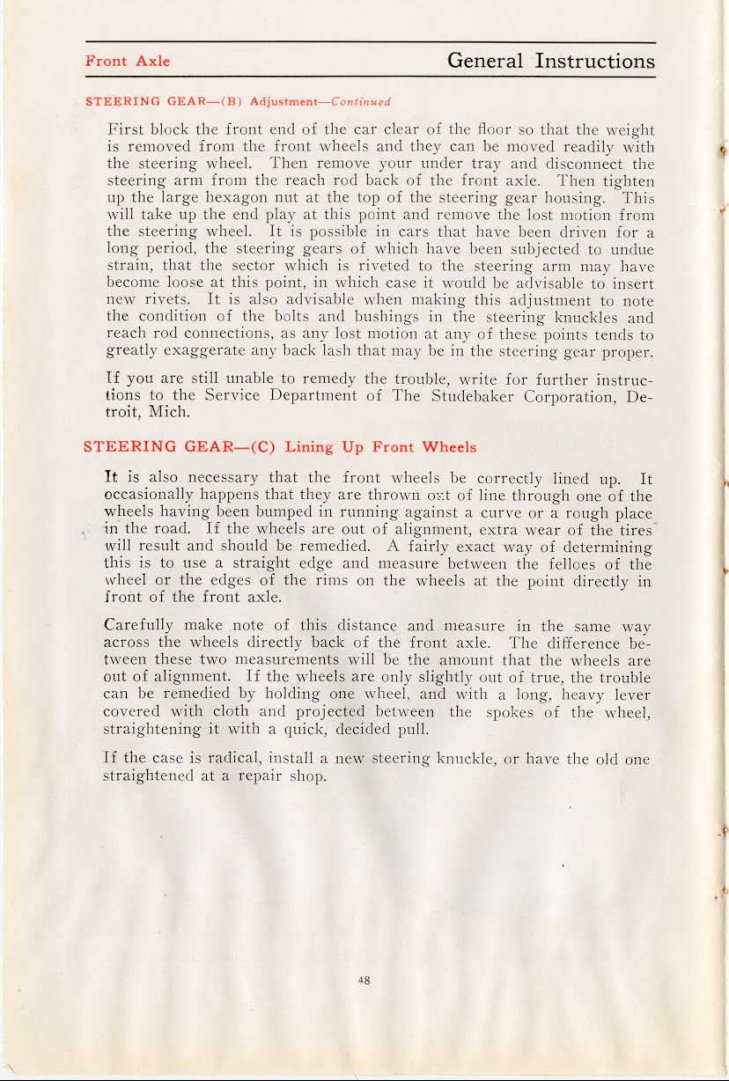

This is page 48 of the Information manual. Includes continuation of "Steering Gear--(B) Adjustment" and section on Steering Gear--(C) Lining up Front Wheels"

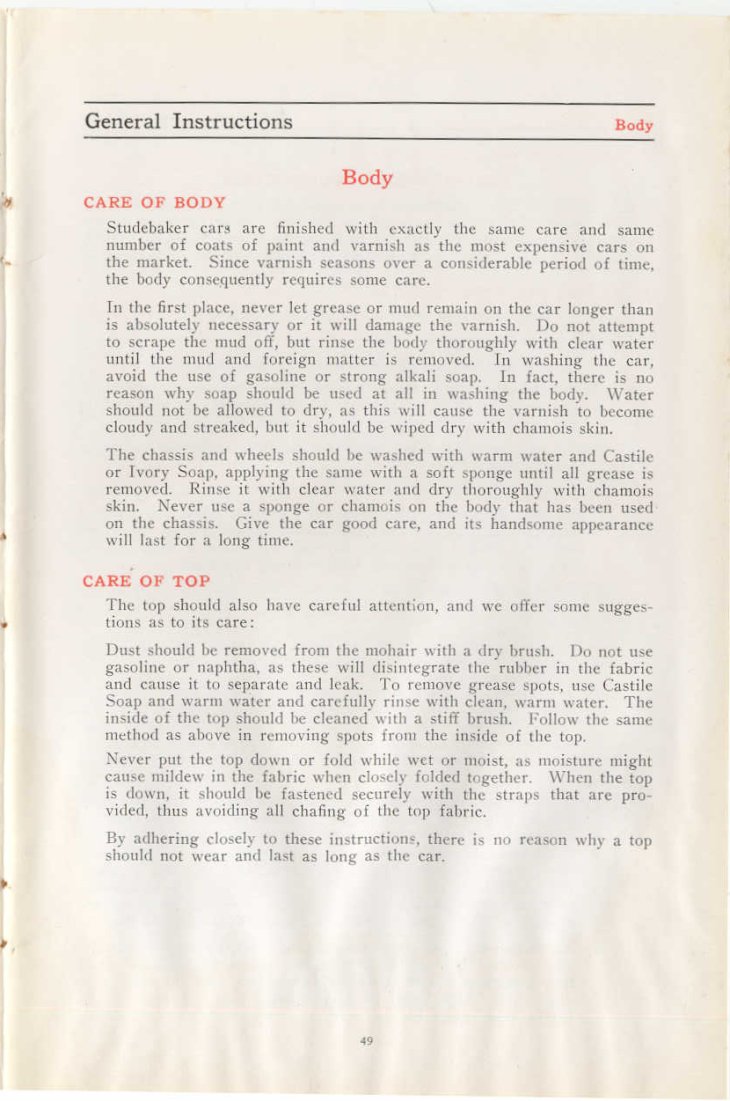

This is page 49 of the Information manual. Includes sections on "Care of Body" and "Care of Top".

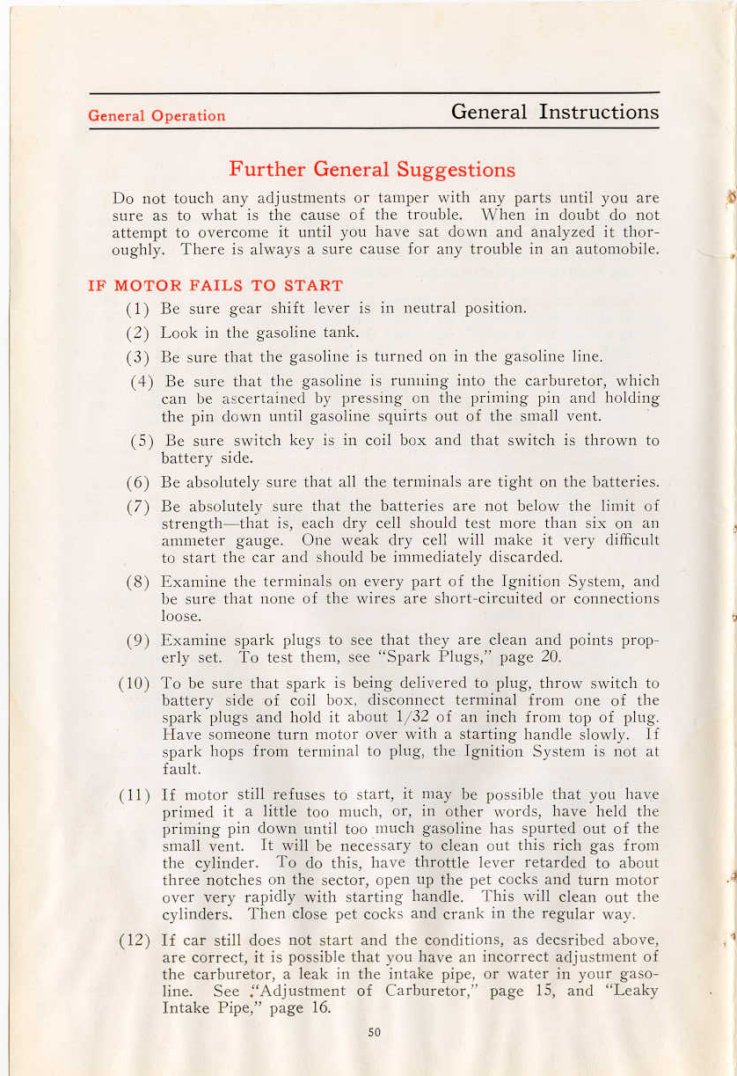

This is page 50 of the Information manual. "Further General Suggestions" section including "If Moto Fails to start".

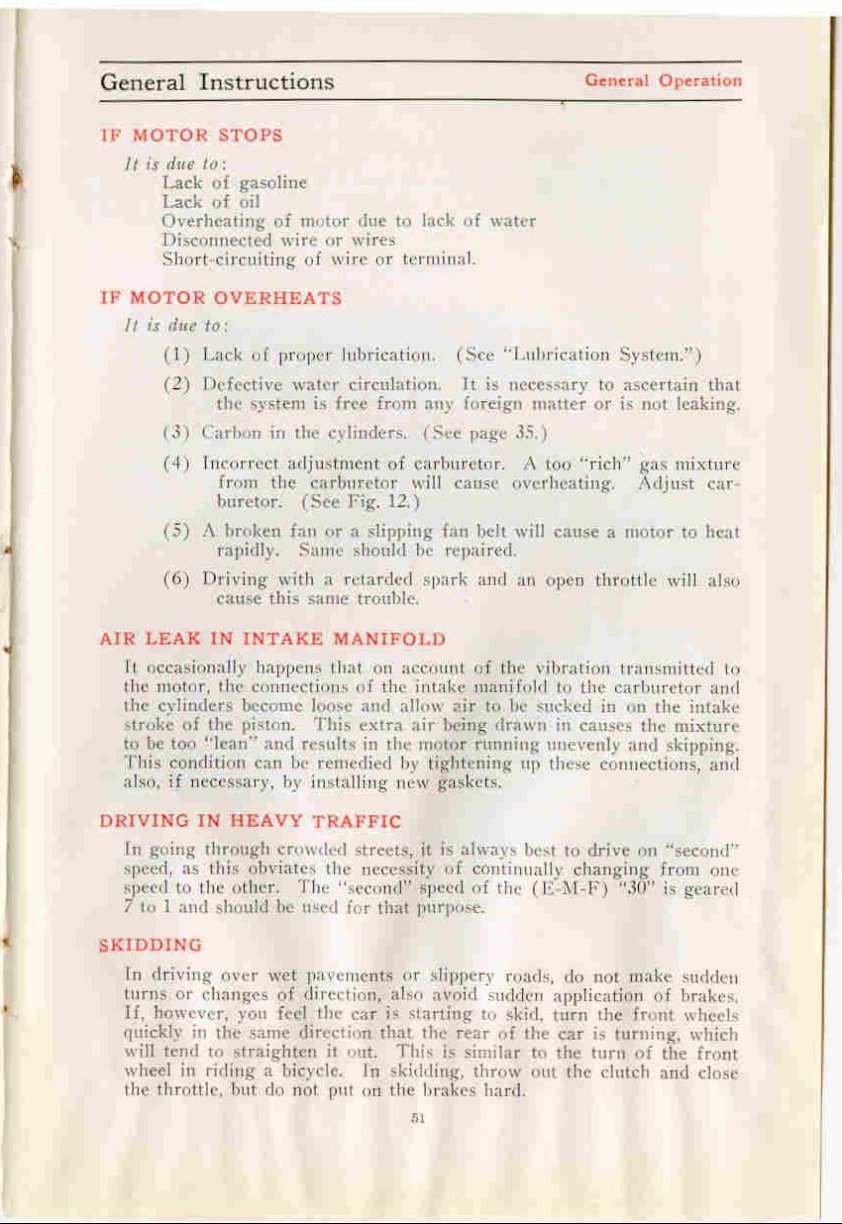

This is page 51 of the Information manual. Includes troubleshooting section with the topics "If Motot Stops", "If Motor Overheats", "Air Leak in Intake Manifold", "Driving in heavy Traffic" and "Skidding".

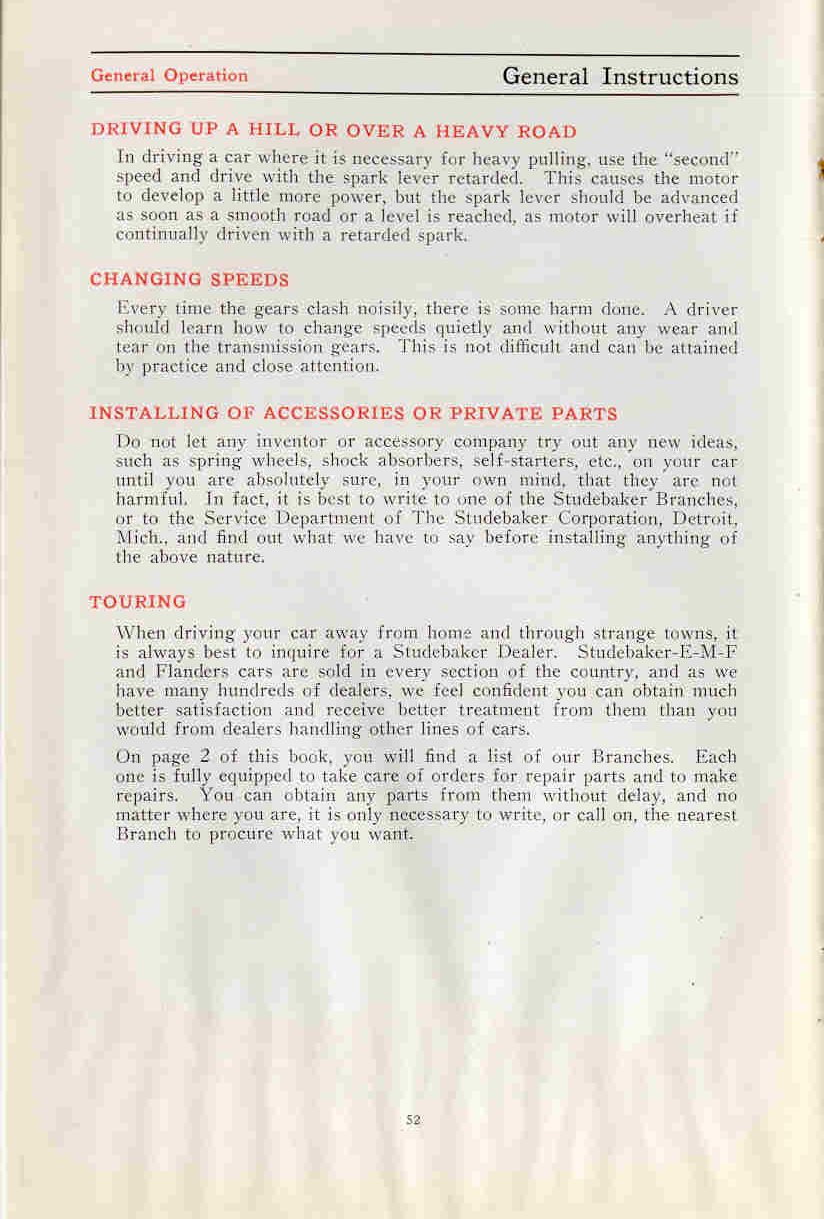

This is page 52 of the Information manual. Includes general instructions on "Driving up a Hill or Over a Heavy Road", "Changing Speeds", "Installing of Accessories or Private Parts" and "Touring".

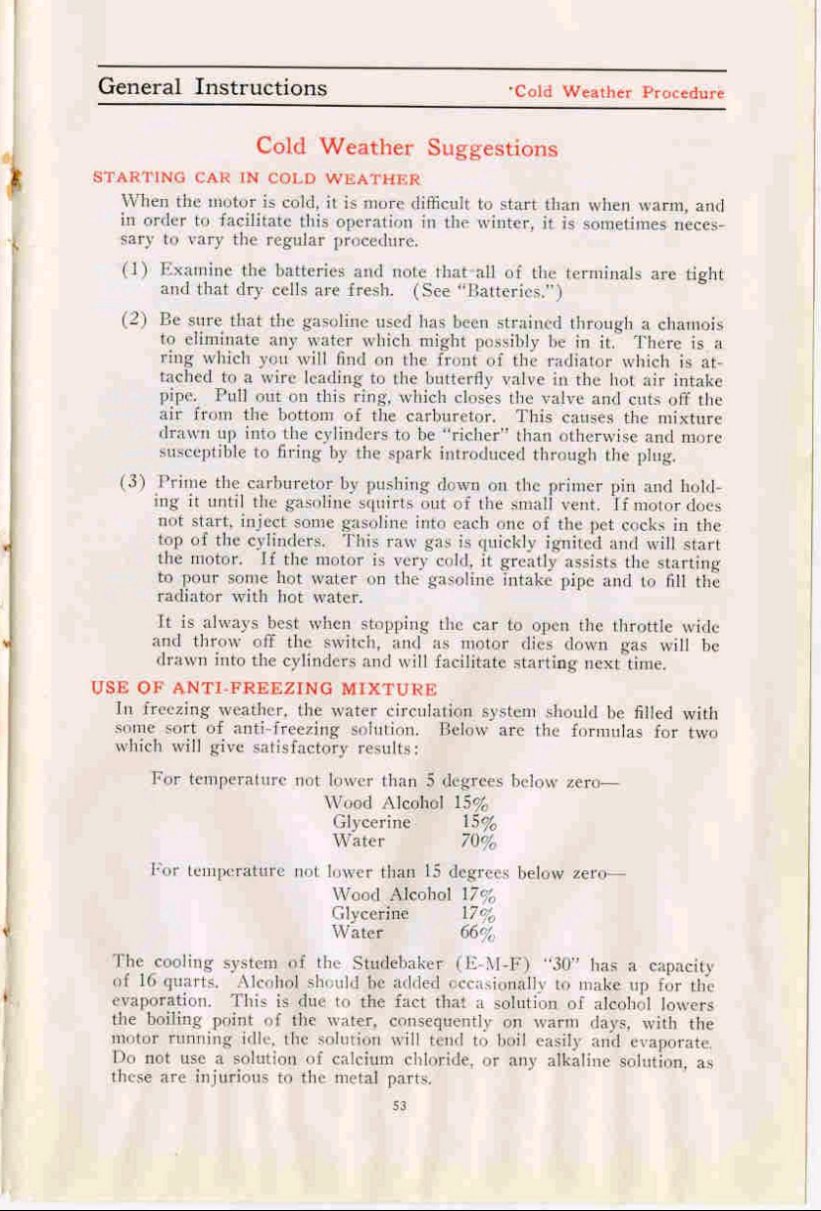

This is page 53 of the Information manual. Cold Weather suggestions including starting the car and the use of anti-freeze mixture. The formula for two different anti-freeze mixtures is listed.

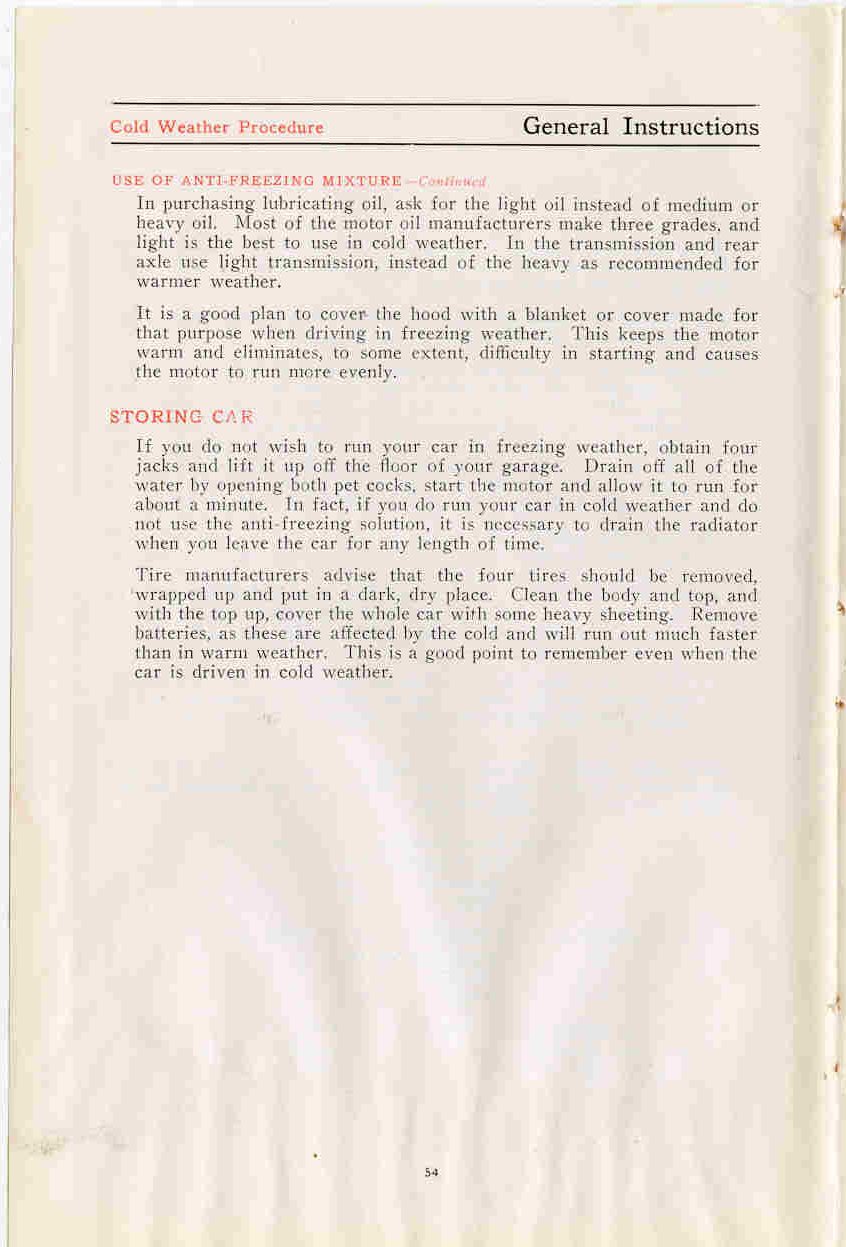

This is page 54 of the Information manual. Included conclusion of the anit-freeze discussion and a section on what to do when storing the car and the preperations involved.

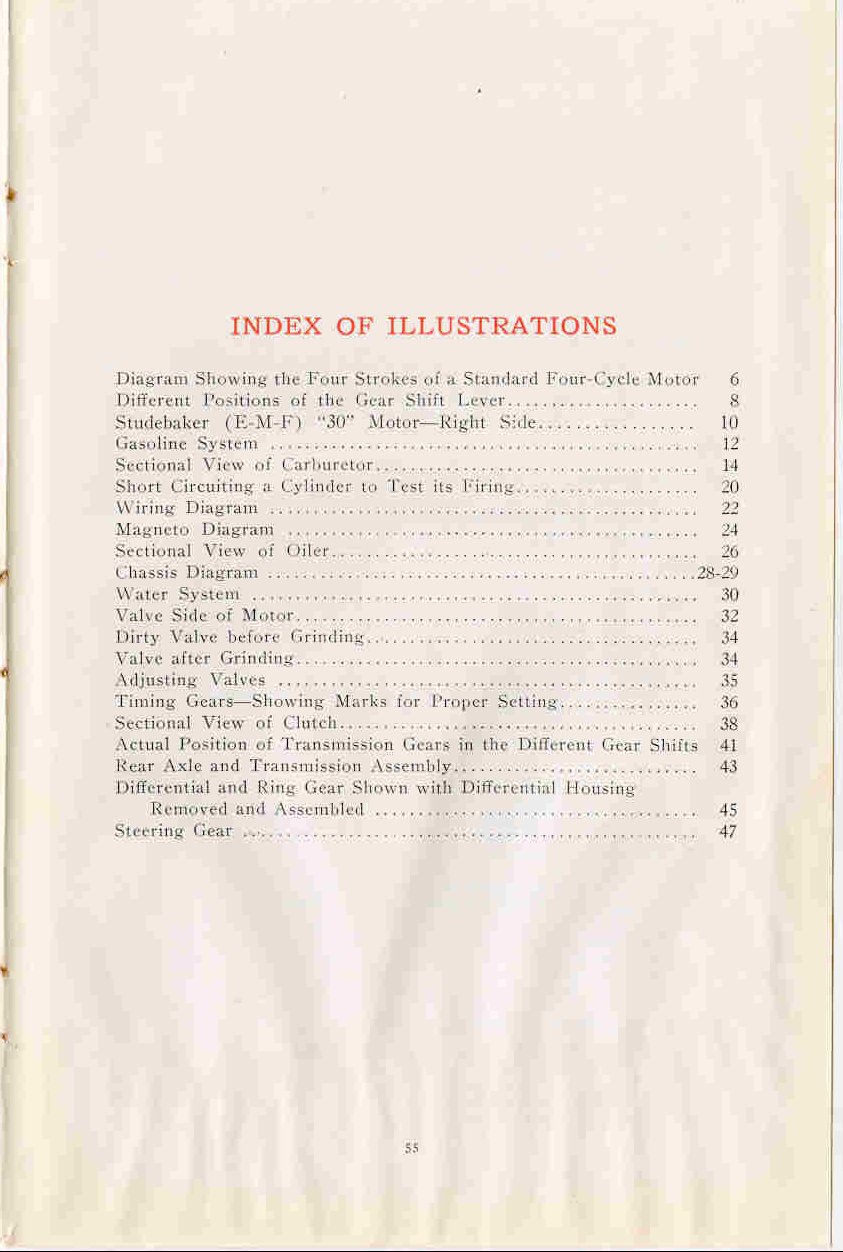

This is page 55 of the Information manual. This page has the index of illustrations.

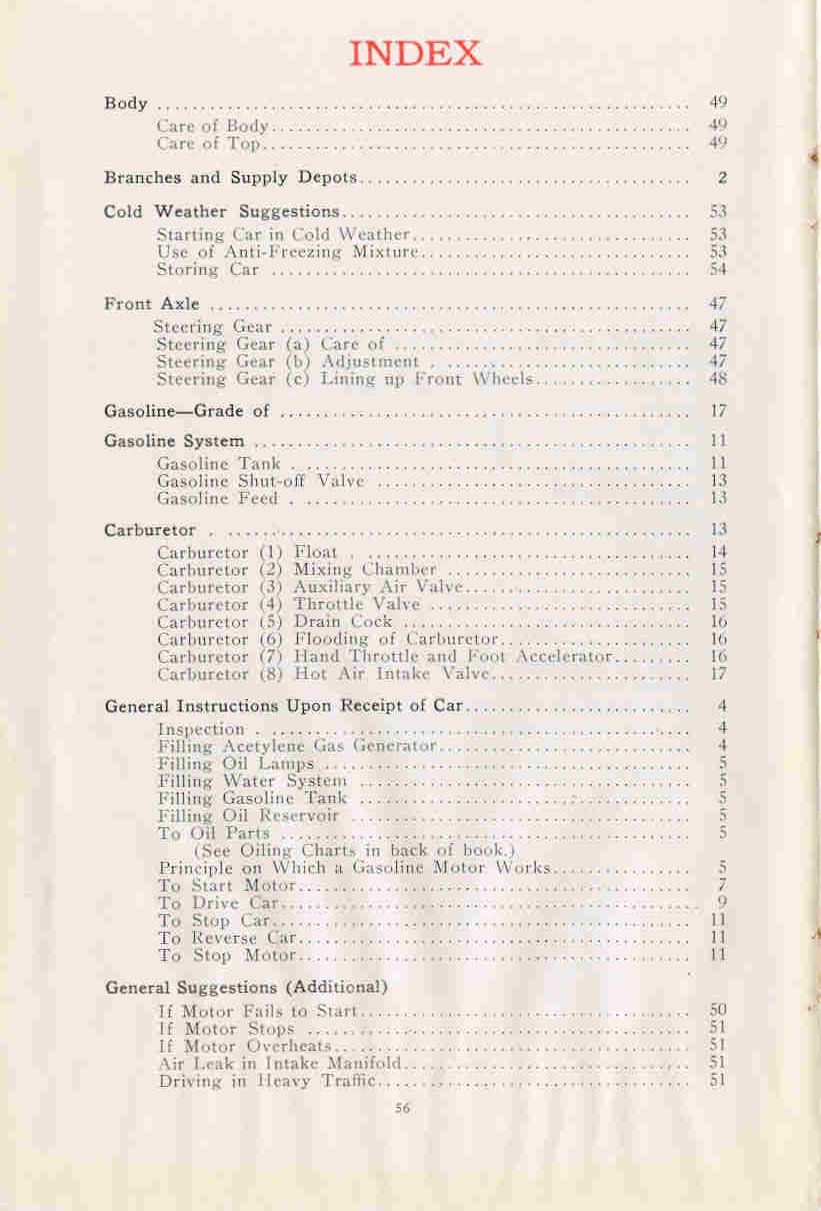

This is page 56 of the Information manual. First page of index covering the "Body" through "General Suggestions (Additional): Driving in Heavy Traffic".

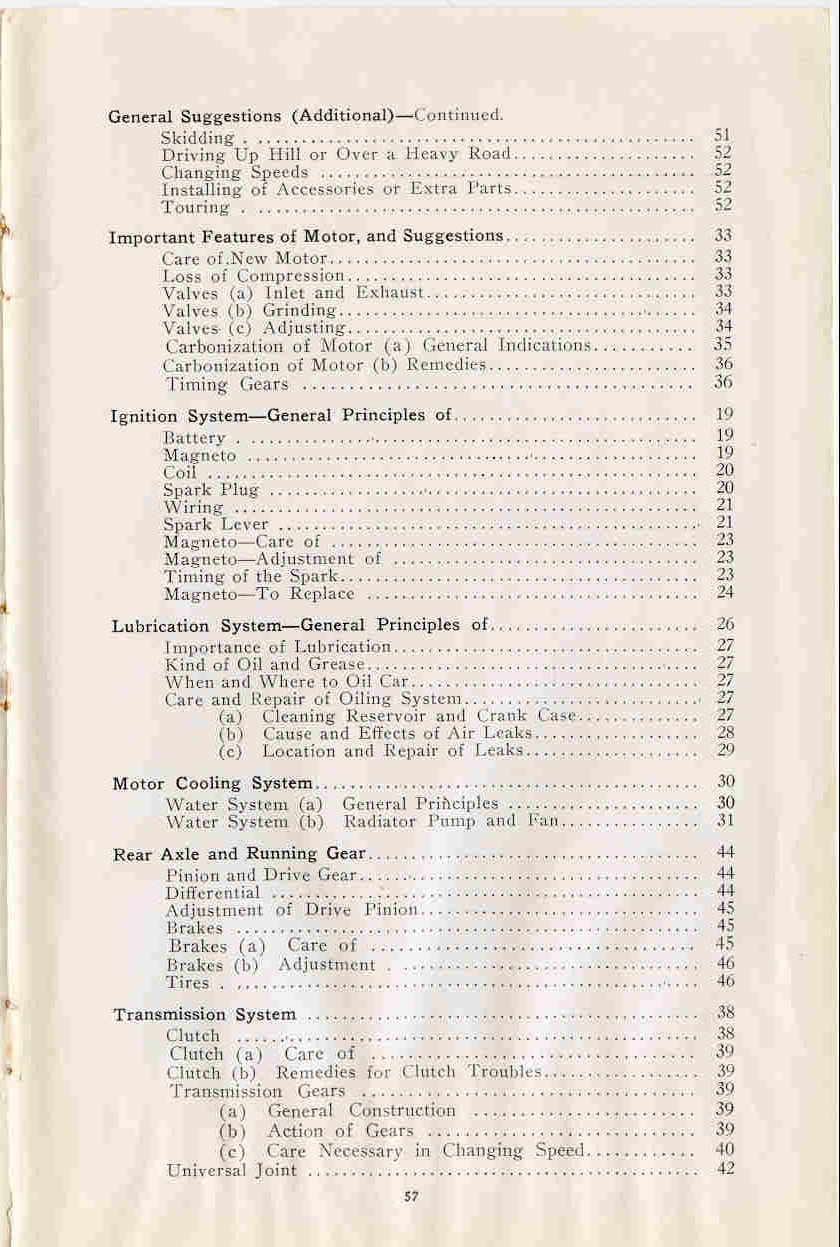

This is page 57 of the Information manual. This is the second page of the index covering "General Suggestions (Additional): Skidding" through "Transmission System".
