Striping Diagrams for E-M-F 30 Automobiles

So you want to see some Striping Diagrams for E-M-F Motor Cars ? Well, you have found the right page.

Sign My Guest Book These diagrams were made from the original striping on my 1912 E-M-F Demi Tonnueau, or sent to me from other E-M-F Owners.

I will add links here as I document the striping as I restore the car.

The pages are presented as a link with a description to the right of the link detailing what is on that page.

If you have trouble reading the page, try clicking on the picture to bring up the full size picture of the page, and then saving the picture to your PC by right clicking and selecting "Save Picture As". Then you can bring up the picture on your PC and it will be easier to read. Enjoy!!!



1911 Model Year

Click on image for full size.

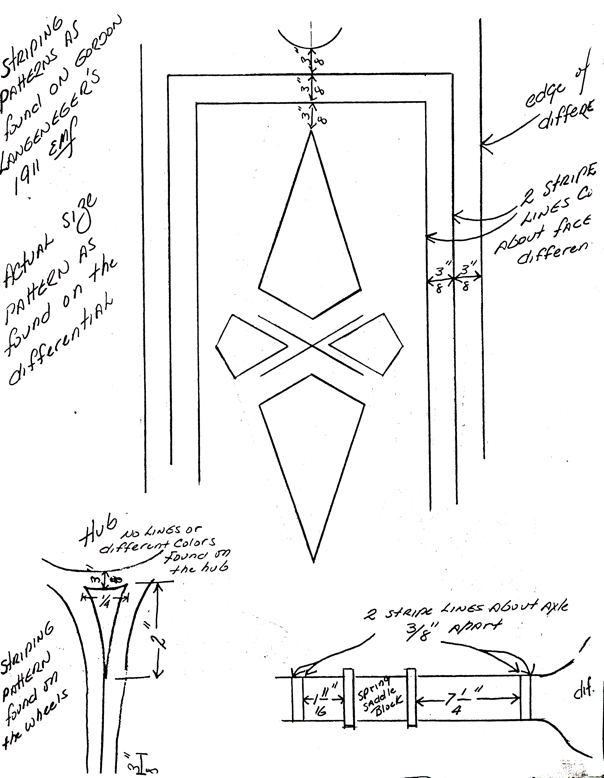

These diagrams were provided by Gordon Langeneger from the 1911 E-M-F he is restoring. It contains diagrams of the rear-end, and spokes near the hub. Thanks to Gordon for providing these.
Posted 2011-06-08

1912 Model Year

Click on image for full size.

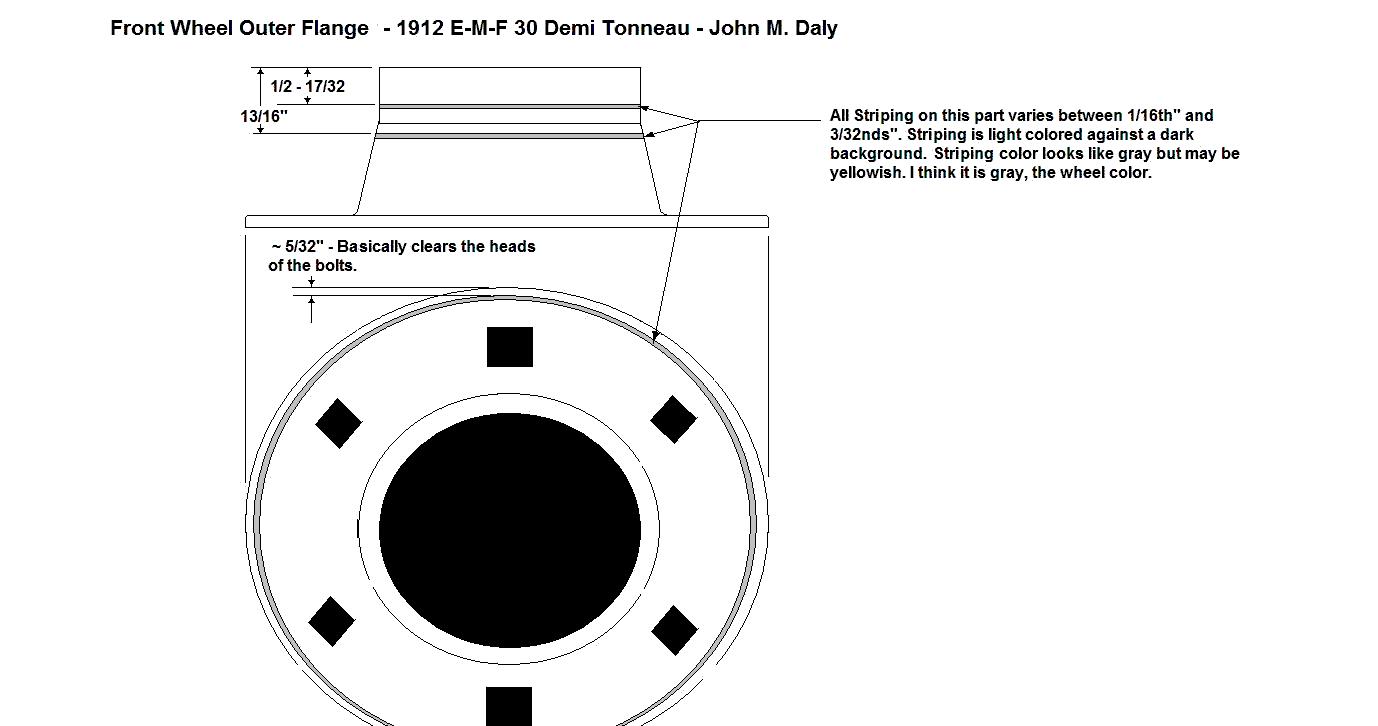

This is a diagram for the wheel hubs on the 1912 E-M-F. The wheel hubs where painted the blue Body color and striped in gray. I also believe the tops of the hub bolts were painted gray.
Posted 2010-01-01
Click on image for full size.

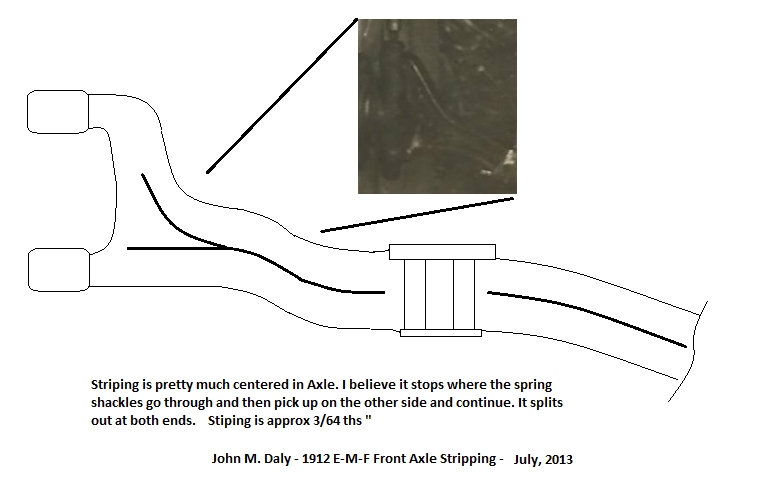

This diagram includes the diagrams of the original striping on the front axle of my 1912 E-M-F Demi Tonneau. Paint scheme was black axle with grey striping.
Posted 2013-07-05
Click on image for full size.

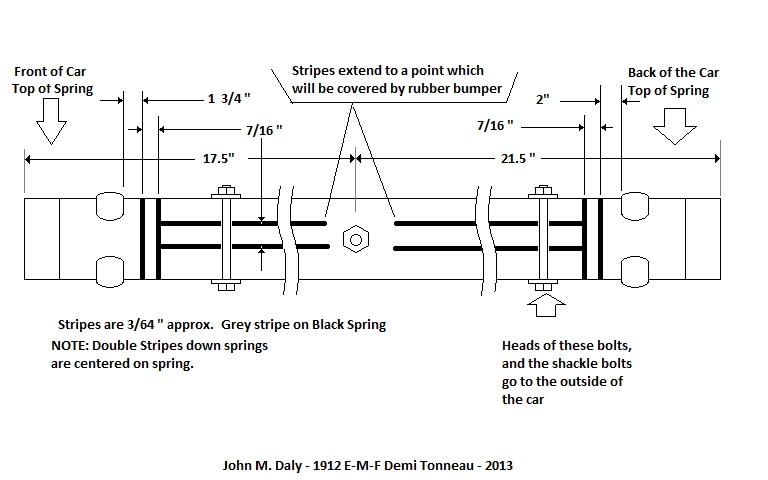

This diagram includes the diagrams of the original striping on the front springs of my 1912 E-M-F Demi Tonneau. Paint scheme was black spring with grey striping on tp facing surface.
Posted 2013-07-05
